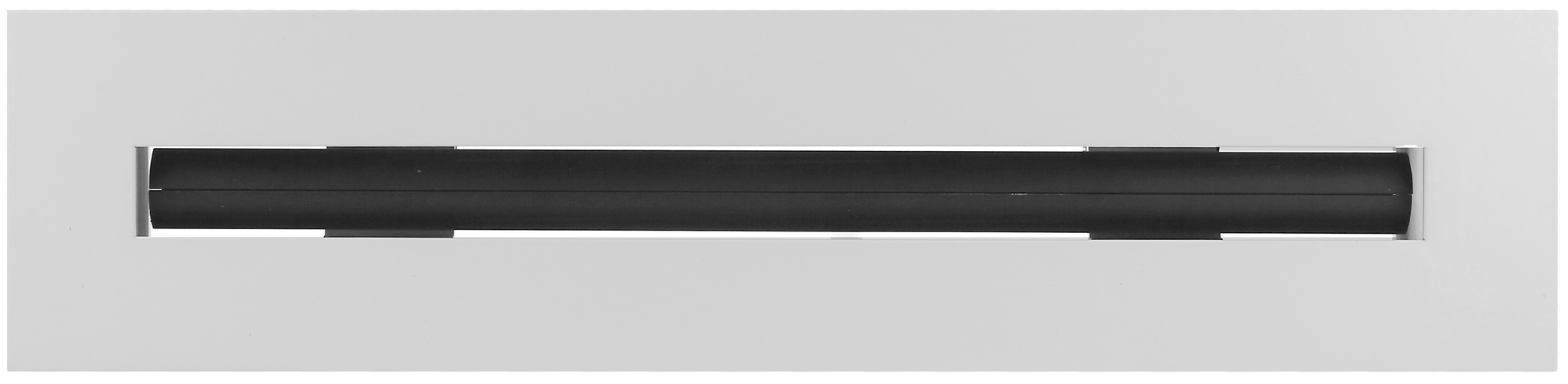

Front view of a white 16 inch 1-slot linear diffuser with 19mm openings for precision airflow in commercial HVAC systems
Side view of a white 16 inch 1-slot linear diffuser with 19mm openings for precision airflow in commercial HVAC systems
Full dimensions of a white 16 inch 1-slot linear diffuser with 19mm openings for precision airflow in commercial HVAC systems
Linear Slot Diffuser -1-slot submittal
Linear Slot Diffuser - 1-slot comparison (precision VS. high airflow)
Linear Slot Diffuser - Installation instructions

16" Linear Slot Diffuser Vent Cover (1 Slot with 19mm Opening) - Matte White - FLO-MATRIX HVAC

FWASD19-1/76W/434L/PCWS02
Regular price
$32.58 CAD
Sale price
$32.58 CAD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Details

This 16-inch linear slot diffuser delivers both aesthetic appeal and performance with its crisp matte white finish. Unlike inferior alternatives, it's crafted from heavy-duty extruded aluminum - identical to the premium material specified for high-end commercial installations. This vent cover excels at maintaining consistent airflow in your environment while offering precise control for VAV applications through its 19mm slot opening and 180-degree adjustable blades. (See our airflow visualization video for performance verification in the videos section.) We recommend professional installation by qualified HVAC technicians for optimal results.



  • Precision Size & Design: Features a clean 16" x 1.5" nominal size with a sharp ¾" (19mm) slot opening for a sleek, modern aesthetic. (Please refer to the size diagram for detailed dimensions).
  • Eliminates Ceiling Smudges: An integrated weather-stripping seal prevents air leakage, protecting your ceiling from unsightly dust marks and ensuring all air is directed through the diffuser.
  • Durable, Commercial-Grade Construction: Built from heavy-duty 6063-T5 architectural-grade aluminum with a tough powder coat finish and reinforced Tig welds to resist cracking, chipping, and bending for a lifetime of performance.
  • Strong Matte White Surface: Features a sophisticated matte white powder coat that is not only elegant but also remarkably resistant to wear, including scratches and corrosion.
  • Clean, Minimalist Installation: Designed for a flawless look with no visible screw holes. Fastening points are discreetly located on the inner border sides. (Note: Fasteners are not included).
  • Custom Airflow Solutions: Pair this diffuser with a customizable plenum box (sold separately) to perfectly match your HVAC system's requirements. Watch our plenums intro video to learn more.
  • Fast Shipping from North America: We ship quickly from Vancouver, Canada. Orders to the USA typically arrive within 2-7 business days after dispatch.



Full dimensions of a white 16 inch 1-slot linear diffuser with 19mm openings for precision airflow in commercial HVAC systems



Performance



Performance Data

Flow Rate (CFM)

 Static Pressure (in.wg) Noise Level (NC)

58
80
116

0.11
0.20
0.41

20
30
40

  * Flow rate (CFM) and static pressure (in.wg) are interrelated. It is crucial to know your HVAC system total or static pressure when choosing the proper GRD for optimal performance.



Submittal



Click here to download a high resolution of this submittal sheet



Linear Slot Diffuser -1-slot submittal



Resources



Our Guide to 19mm VS. 25mm Slot Width Differences



Linear Slot Diffusers: The Smart Choice for Modern HVAC Systems



CFD Airflow Analysis Services for Smarter HVAC Design





What Makes a Grille, Register, or Diffuser "Commercial Grade"?

True commercial-grade GRD products provide architects, engineers, and HVAC professionals with the complete technical data needed for precise project specification. This includes detailed information on material composition and comprehensive performance metrics like flow rates, pressure drop, and noise criteria (NC).

All our products are rigorously tested in accordance with ADC1062:GRD-84 and the ASHRAE 70-2006 standards. We leverage computational fluid dynamics (CFD) and modern testing to continuously refine our designs for optimal performance and energy efficiency.

Since 1997, we have been a trusted manufacturer of high-quality linear slot diffusers (from 1 to 12 slots) for the commercial HVAC industry. For project-specific questions and expert guidance, please contact our product specialists at +1-604-437-1527.



Videos



Showcase Video of Product - 1 Slot Linear Diffuser



Demonstration of airflow direction adjustment - 1 Slot Linear Diffuser



How to insert a linear slot diffuser into a plenum



Linear Slot Diffuser Smoke Test (Vertical Throw) Video - 1 Slot



Linear Slot Diffuser Smoke Test (Horizontal Throw) Video - 1 Slot



Videos of previous custom plenums



Our retail store showroom - Greater Vancouver, Canada
