16x2 Plenums FXP Series - FLO-MATRIX HVAC
General Overview
-
Engineered for confined space installations requiring compact plenum dimensions
-
9" overall height enables fitment in low-clearance ceiling cavities and mechanical chases
-
Designed in Canada by Flo-Matrix HVAC
-
Intended for commercial HVAC applications and professional system integration
- Please note that this listing is intended for Canadian shipping addresses at this time. For customers with U.S. shipping addresses, we would be happy to prepare a customized quotation—please reach out to us directly. Thank you for your understanding.
Construction & Materials
-
Fabricated from 24 Gauge G90 galvanized steel (0.6 mm thickness / Z275 coating grade)
Insulation Option
-
Available with low VOC, fiber‑free, non‑particulating, closed‑cell elastomeric foam insulation
Configuration & Compatibility
-
Multiple inlet sizes and configurations available to match project-specific airflow requirements
-
Full‑size standard outlet compatible with typical air vent connections
-
Fits linear slot diffusers and grilles up to 2" insertion depth
Installation Features
-
Side mounting holes provided for rapid positioning
-
Reduces field installation time
Functional Use
-
Suitable for both supply air distribution and ducted return air applications
Ordering & Policy Note
- Custom-built to specified dimensions and options available. Please contact for details.
- No returns or exchanges – verify all dimensions and selections prior to ordering
- Production Leadtime : (Uninsulated: 3-Business Days / Insulated: 4 to 5 Business Days)
Product Dimensions
-

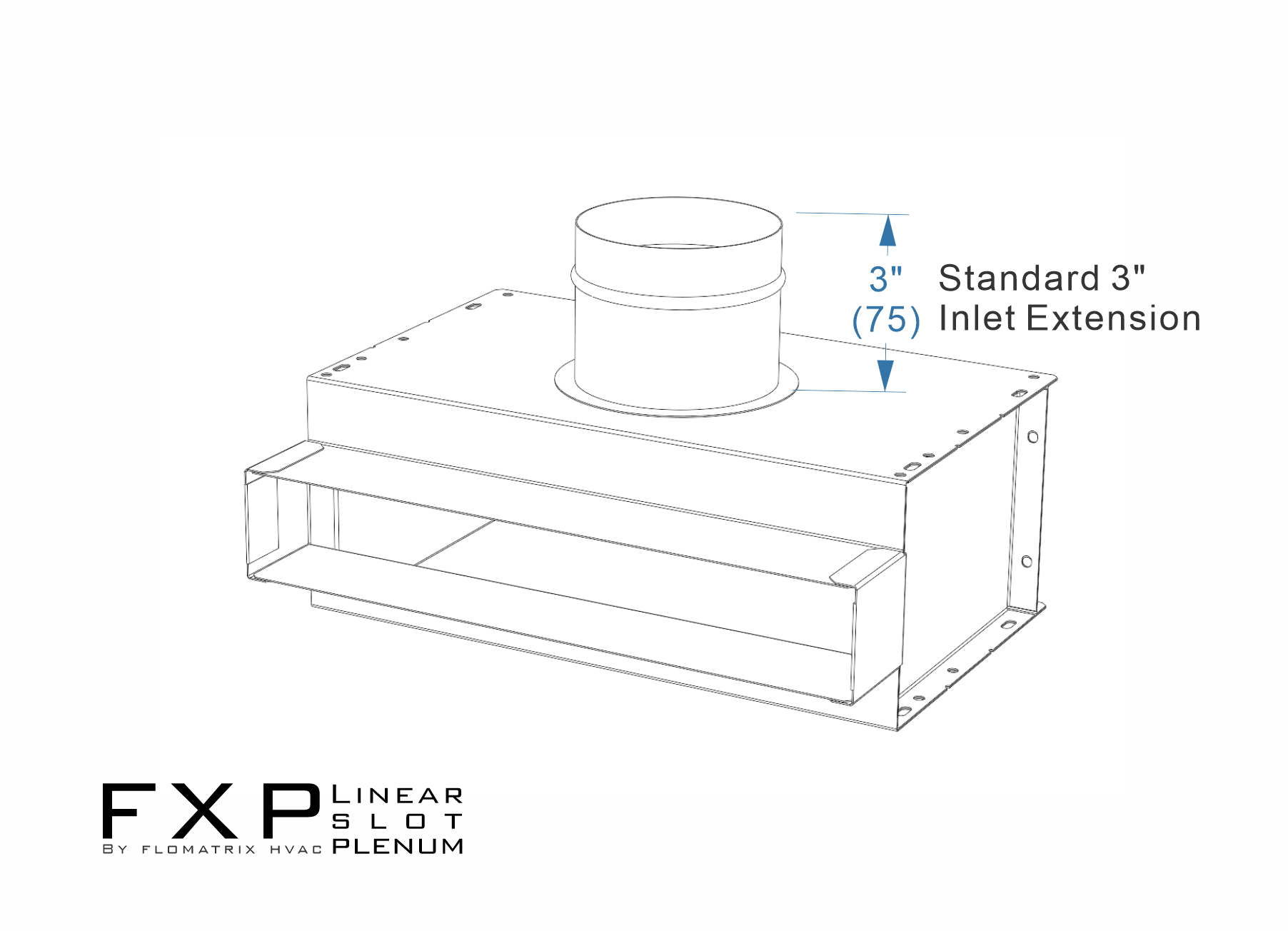

Inlet Configuration: Centered, as shown

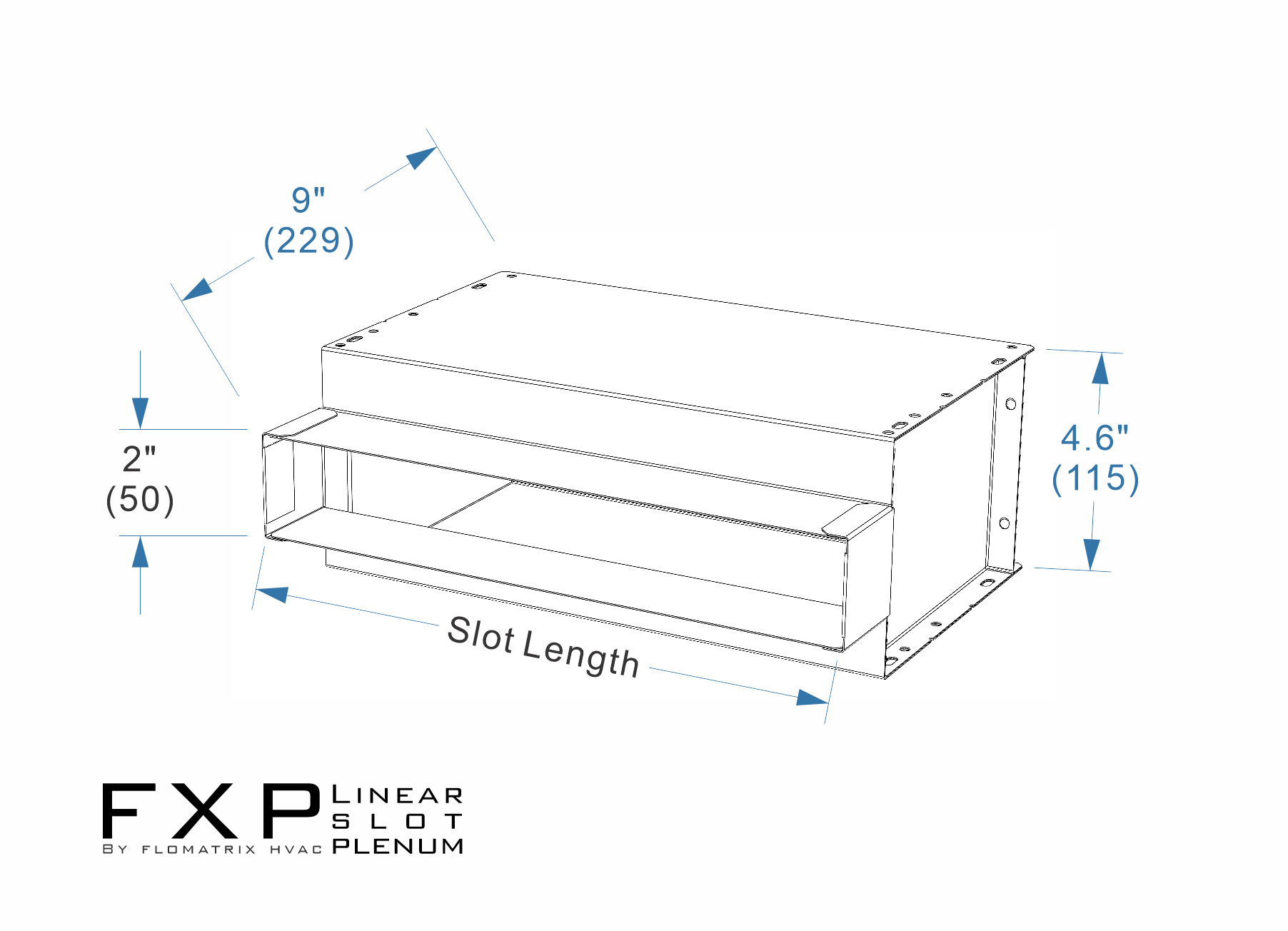

- Overall Dimension: 16.2" x 4.6" x 9" (L x W X H) plus 3" inlet extension
- Rough Outlet Size: 16" x 2" ( 2" Depth )
This is a custom professional product
|
This plenum fits the following Products:
