Details

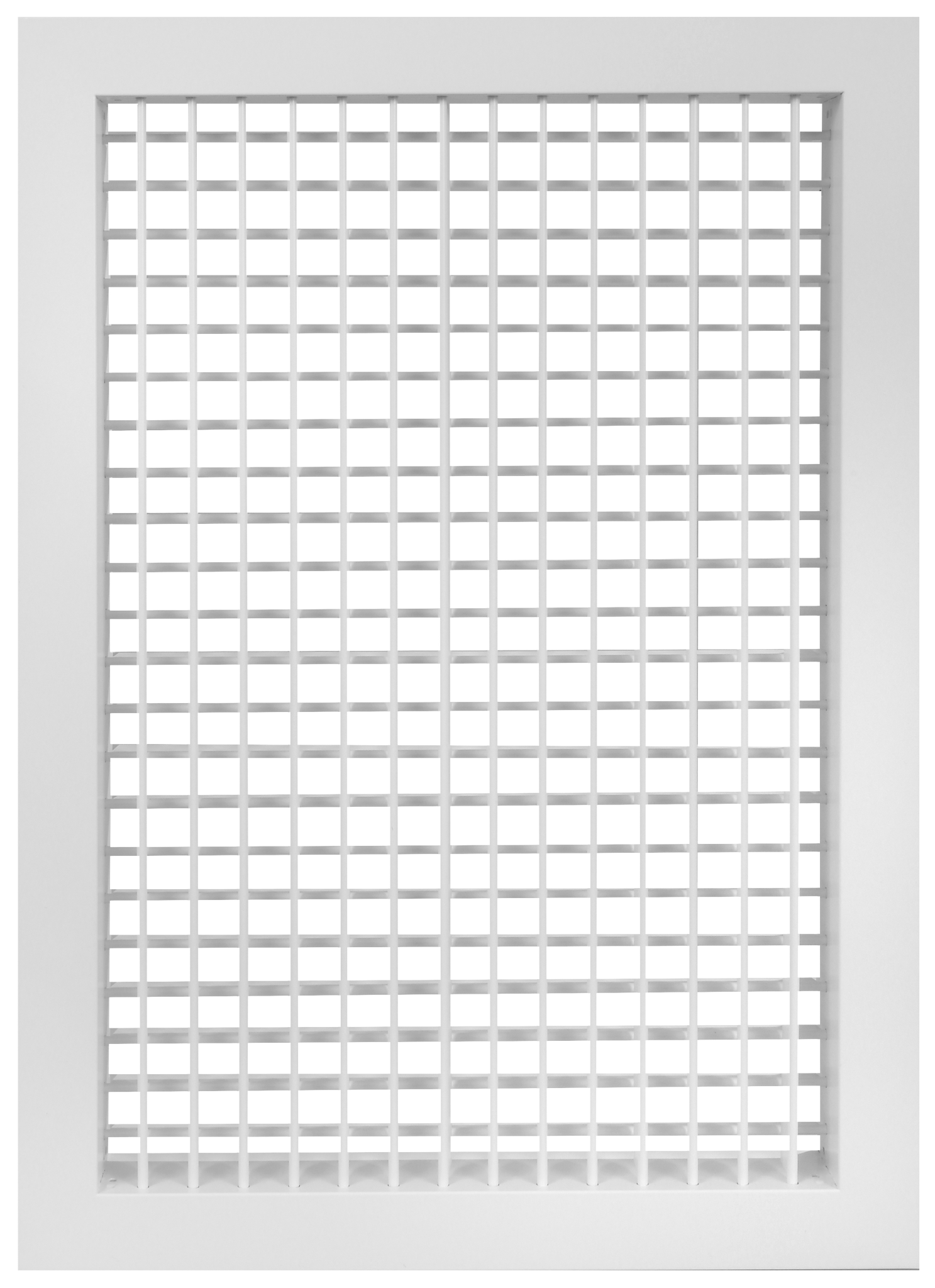

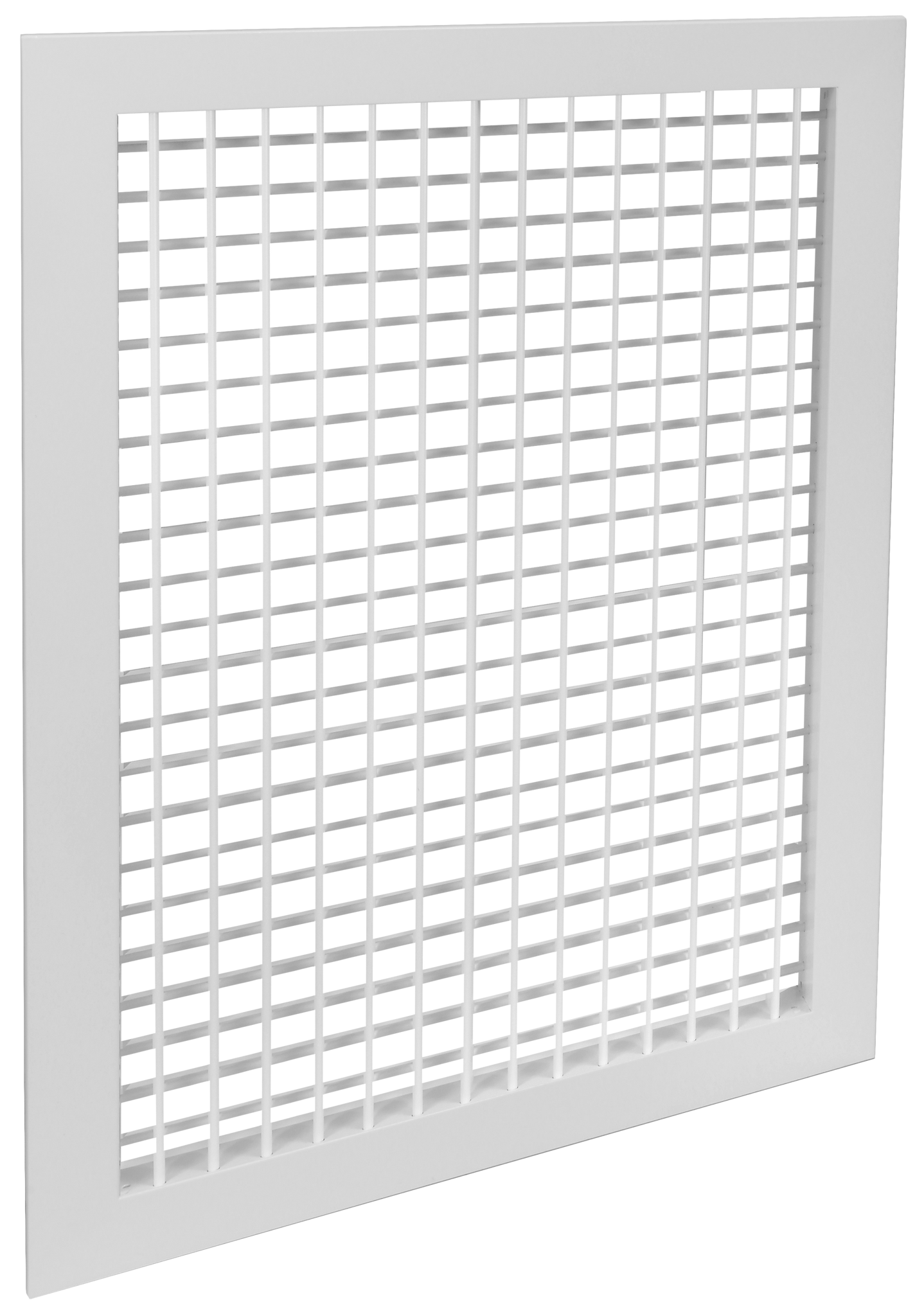

Designed for precision airflow control in commercial HVAC systems, our 8x14 inch double deflection grilles feature front vertical blades for side-to-side air direction, paired with rear horizontal blades for up/down throw adjustment. The dual-blade system gives contractors and engineers complete command over ventilation patterns—perfect for theaters, lobbies, or office spaces where drafts must be eliminated. This register delivers optimal air distribution with minimal turbulence, while the high free area design maintains airflow efficiency and reduces noise. Whether balancing an existing system or specifying new construction, the double deflection design ensures consistent comfort with customizable horizontal and vertical air distribution. Professional installation recommended.
- Perfect Fit for 8x14" Duct Opening: Designed for a seamless fit on 8x14” ductwork, this air register guarantees easy HVAC integration. Please confirm your exact measurements with our detailed sizing chart for a perfect match.
- Expert Airflow Management: The front vertical blades provide precise, multi-directional control, allowing you to expertly direct conditioned air exactly where it’s needed for optimal comfort in any room.
- Eliminate Air Leaks & Ceiling Stains: A built-in foam gasket creates a tight seal against the ceiling or wall, preventing air leakage that can lead to dust streaks and unsightly staining over time.
- Sleek, No-Hole Aesthetic: Achieve a flawless, modern look with a design that hides mounting hardware. Fastening points are discreetly located on the inner sides, preserving the grille's clean, uninterrupted lines.
- Rugged Aluminum Construction: Built from heavy-duty, 6063-T5 architectural aluminum, this air grille is manufactured for exceptional durability and reliable, long-lasting performance, even in demanding commercial settings.
- Strong Matte White Finish: The tough powder coat finish is not only matte white for a timeless look but also provides superior resistance to corrosion and fading, ensuring it stays looking new.
- Installation Flexibility for Pros: We supply this air grille without fasteners, giving professional installers the freedom to choose their preferred screws or anchors for any specific drywall, plaster, or other substrate.
- Maximize HVAC Performance: For the ultimate in balanced airflow and system efficiency, pair this double deflection grille with a matching custom plenum box (sold separately) to tailor performance to your unique space requirements.
- Quick Shipping from North America: All items ship promptly from our warehouse in Vancouver, Canada, with orders to the USA typically arriving within 2-7 business days.

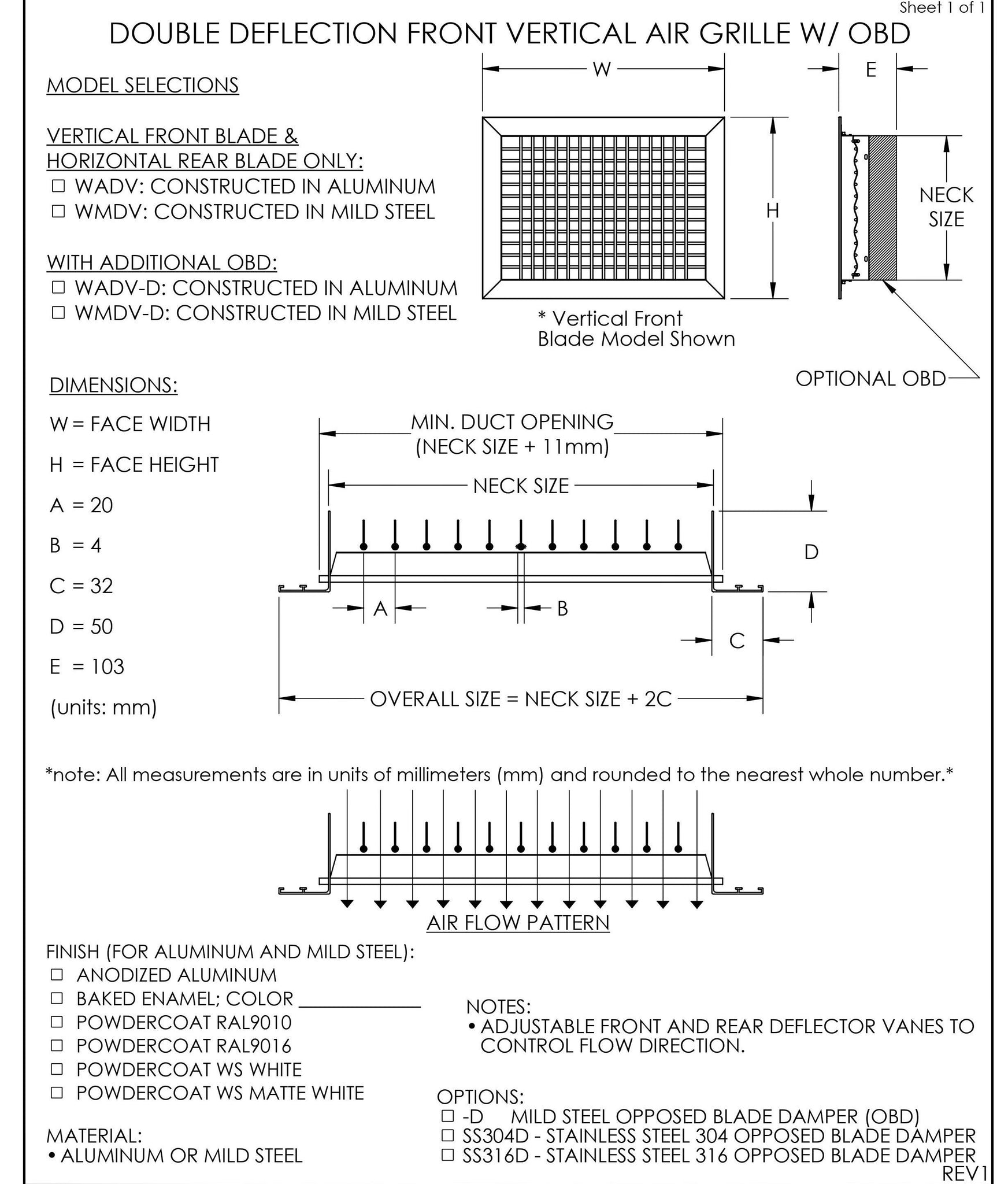

Submittal
Click here to download a high resolution of this submittal sheet
Resources
Double Deflection vs. Single Deflection Air Grilles: Which One Is Right for You?
Front Horizontal or Vertical? A Quick Guide to Double Deflection Air Grille Blades
Why 6063-T5 Aluminum is the Gold Standard for Your Linear Slot Diffuser
CFD Airflow Analysis Services for Smarter HVAC Design
Beyond the Label: What "Commercial-Grade" Really Delivers
The term "commercial-grade" is a commitment to quality that design professionals rely on. It signifies a component backed by extensive technical resources and verifiable data to ensure project success. This partnership provides absolute transparency on materials and delivers the hard performance figures you need—like sound level classifications (NC ratings), precise pressure drop, and reliable CFM calculations.
This confidence comes from third-party verification. Our ventilation solutions are tested to meet recognized benchmarks like ADC1062:GRD-84 and ASHRAE 70-2006. To achieve superior results, we utilize sophisticated modeling software during the design phase. This technology helps us optimize the air distribution patterns and efficiency of our contemporary vent covers and linear grilles, ensuring they perform impeccably in the field.
Flo-Matrix HVAC is a trusted provider of robust air distribution solutions for commercial projects. We specialize in manufacturing heavy-duty linear bar grilles and diffusers designed for demanding applications. Ready to find the right solution for your project? Our specialist team is standing by. Call us today at +1-604-437-1527 for a consultation.
Videos
Showcase Video of Product & Demonstration of Blades Adjustment - Double Deflection Air Grille (Front Vertical)

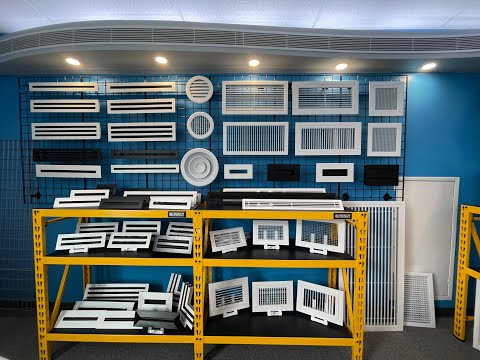

Our retail store showroom - Greater Vancouver, Canada
