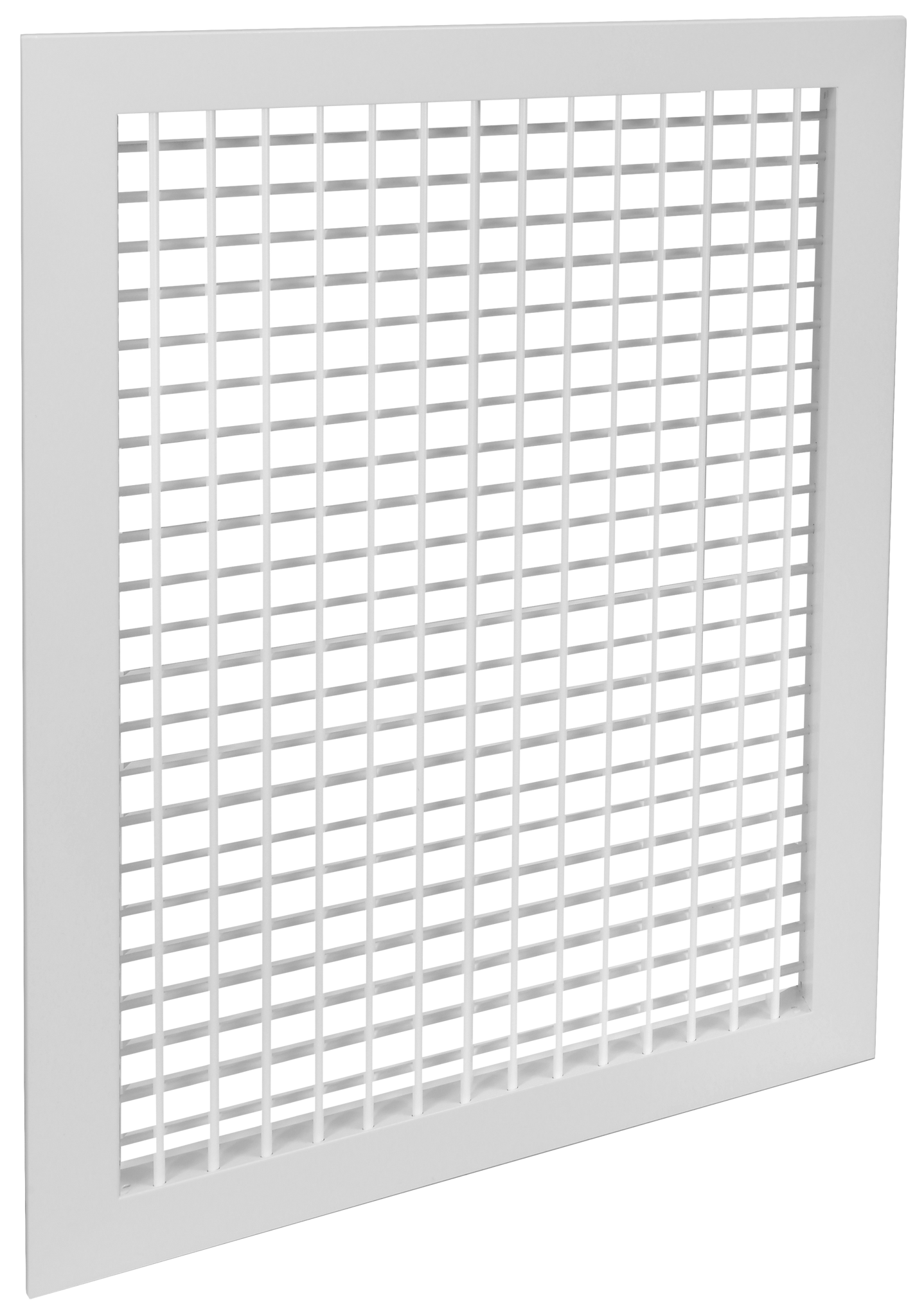

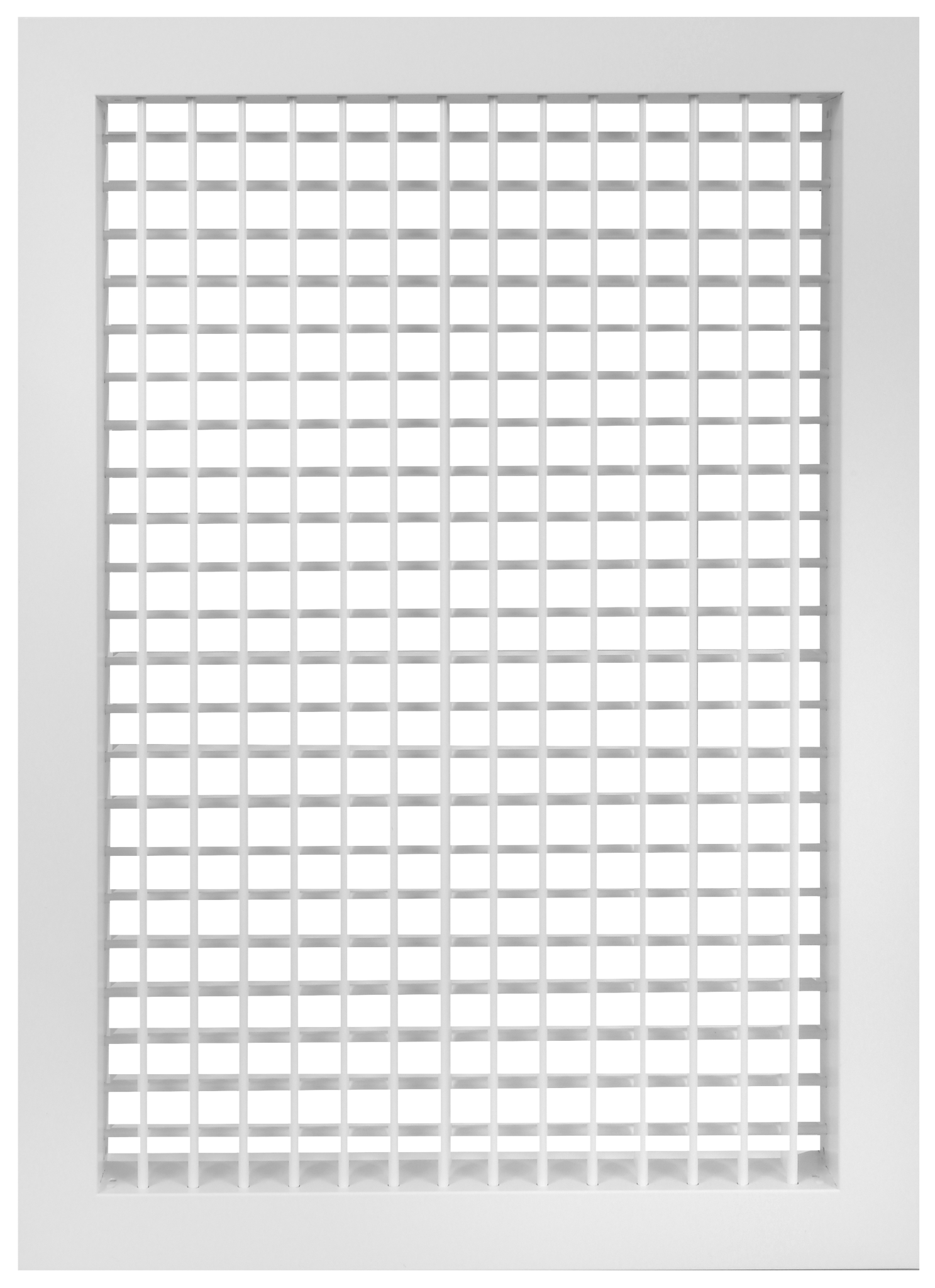

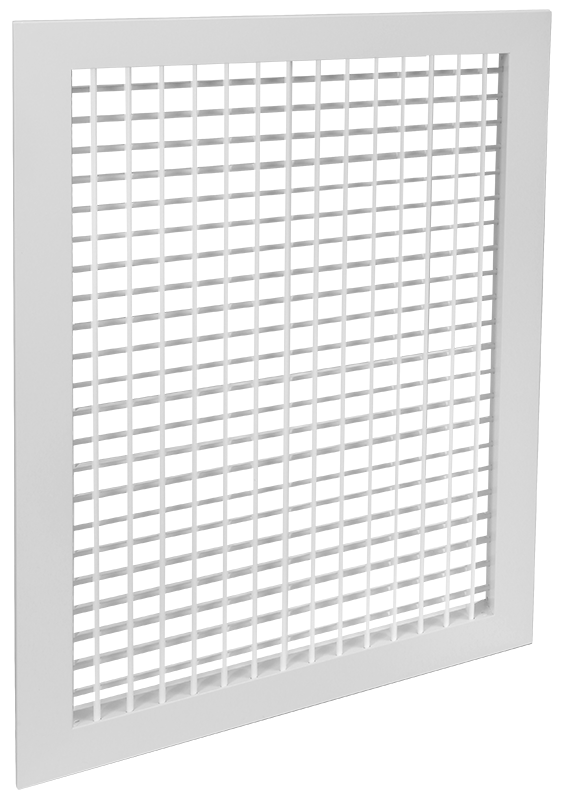

6x12" Double Deflection Air Grille (Front Vertical Blades Vent Cover) - Flo-Matrix HVAC

FWADV/152x305/PCWS02
Regular price
$27.39 CAD
Sale price
$27.39 CAD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Details



Our architectural grade double deflection grilles are made with solid extruded aluminum. These air grilles are ideal for general air distribution and VAV applications. The adjustable deflector vanes create a precise fit to improve air flow and your comfort level. This product requires installation by professionals.



  • Duct Opening Size: 6x12" (please refer to size chart below for details)
  • Front vertical blades
  • There are no pre-drilled holes on the surface. Fastening has to be done on the inner border sides for an aesthetic appearance.
  • These double deflection grilles do not include fasteners.
  • Commercial Grade
  • Material: solid extruded aluminum
  • Finish: Powder coated in matte white
  • Ships from Vancouver, Canada. Shipping to USA takes 2-7 business days after dispatch (depends on delivery address).





Submittal



Click here to download a high resolution of this submittal sheet

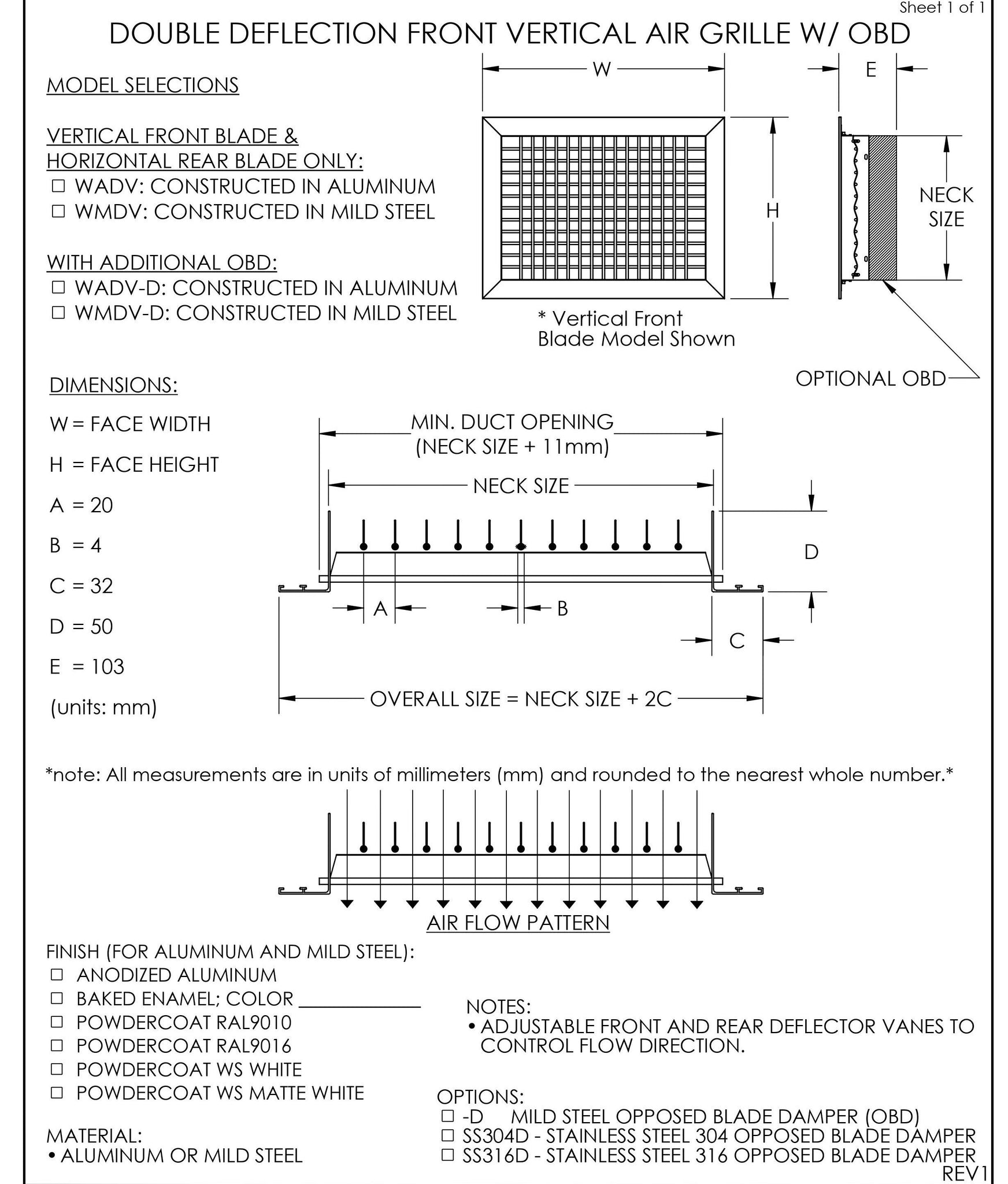

Double Deflection (front vertical blades) air grilles Submittal Sheet





Videos



Showcase Video of Product & Demonstration of Blades Adjustment - Double Deflection Air Grille (Front Vertical)

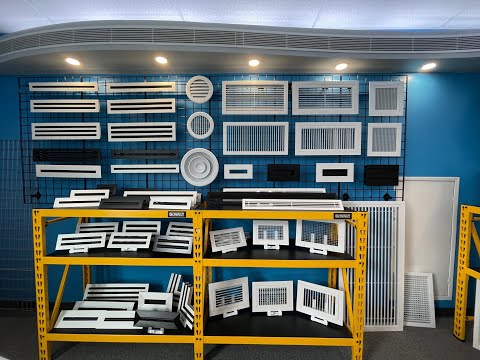

Our retail store showroom - Greater Vancouver, Canada
