Details

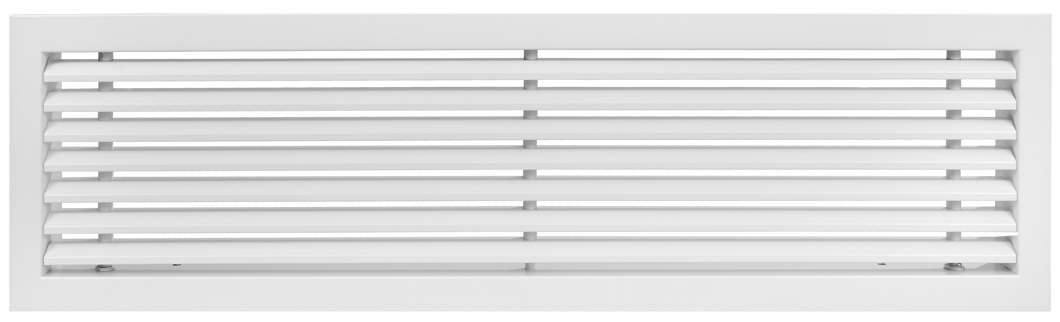

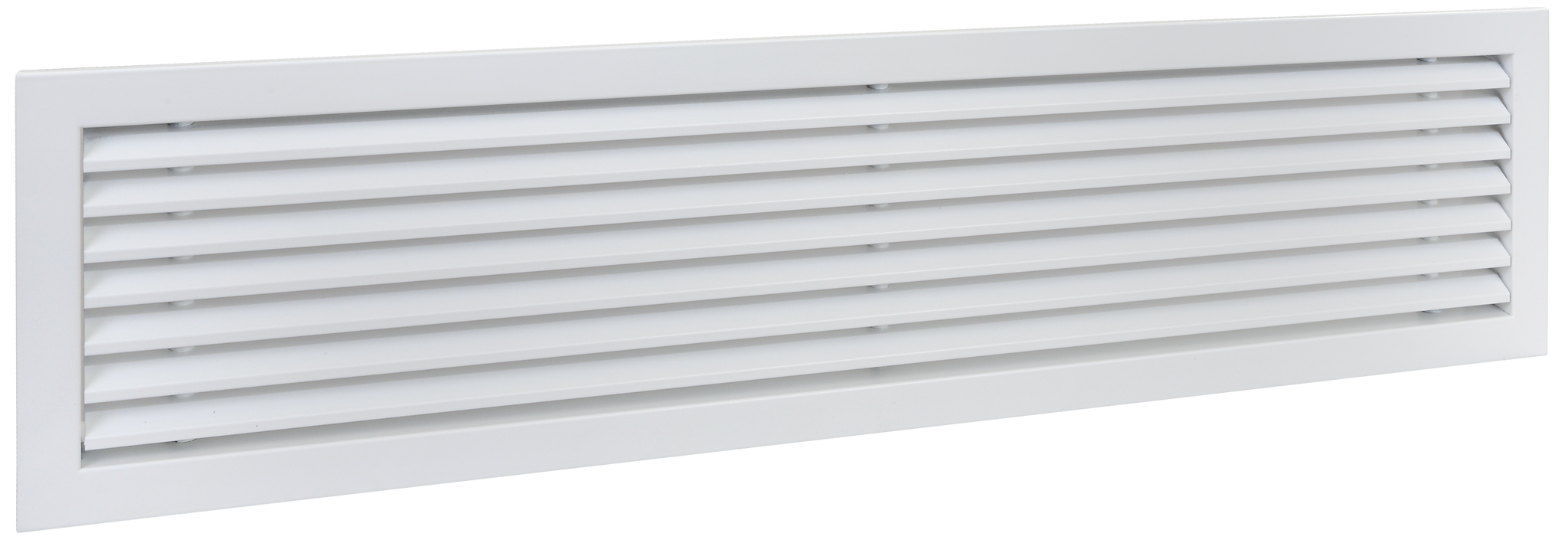

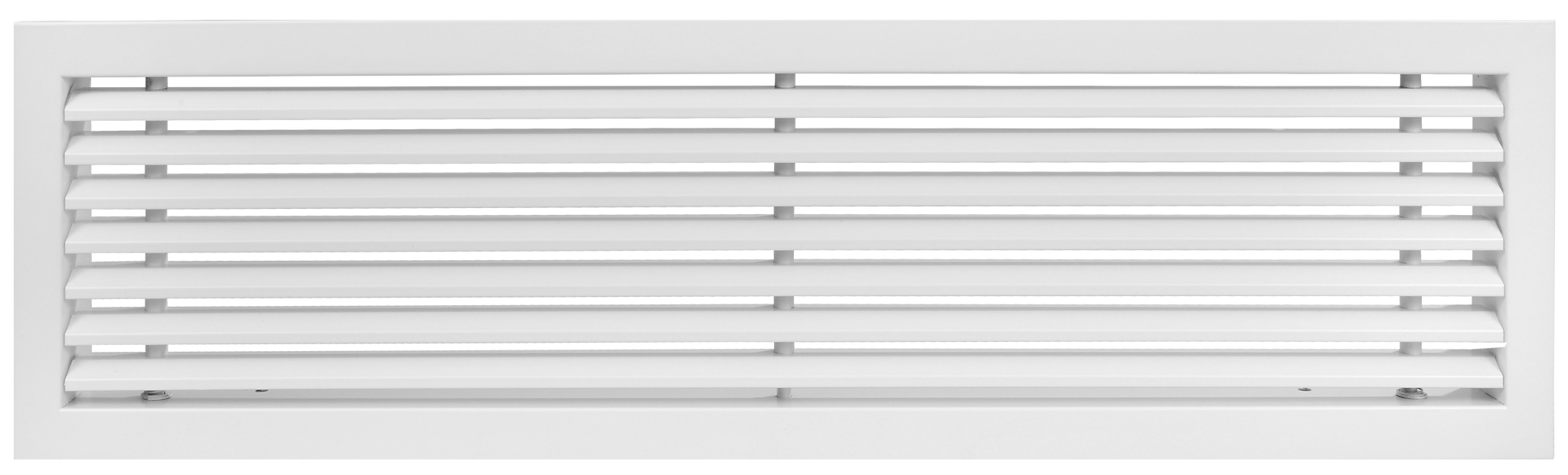

Designed for precision airflow control, these 22x4 inch architectural linear bar grilles feature 30-degree deflection fixed bars to direct air exactly where it's needed. Built from rugged extruded aluminum, they withstand demanding environments while resisting corrosion year after year.
Perfect for commercial spaces, these grilles work equally well for supply or return air in heating, cooling and ventilation systems. The 30-degree angle provides superior air direction compared to flat grilles, while maintaining that sleek, continuous look designers specify. Installation is flexible - ceilings, sidewalls or sills - though we always recommend professional installation for optimal performance.
- Perfect Fit for Targeted Comfort: Designed for a precise 22x4" duct opening, the aggressive 30-degree deflection pushes air further into the room, eliminating hot and cold spots. Please see the submittal for measurements.
- Maintain a Pristine Ceiling: Our integrated perimeter seal creates an airtight barrier, stopping dust from leaking out to mar your ceiling and ensuring a cleaner, maintenance-free appearance.
- Commercial-Grade Aluminum Build: Constructed from solid extruded 6063-T5 architectural aluminum for exceptional strength and durability, ensuring this heavy-duty linear bar grille stands the test of time.
- Scuff-Resistant Matte White Finish: Coated in a durable matte white powder coat that is highly resistant to corrosion, scuffs, and daily wear, maintaining its clean look for years.
- Seamless Architectural Installation: Achieve a flawless, minimalist look with concealed mounting points designed for a clean finish. (Fasteners not included).
- Custom Airflow Solutions: This 30-degree linear bar grille can be paired with an optional custom plenum box (sold separately) to meet the specific requirements of your HVAC system for optimized performance.
-
Fast North American Shipping: We ensure quick dispatch from our warehouse in Vancouver, Canada. Orders to the USA typically arrive within 2-7 business days.

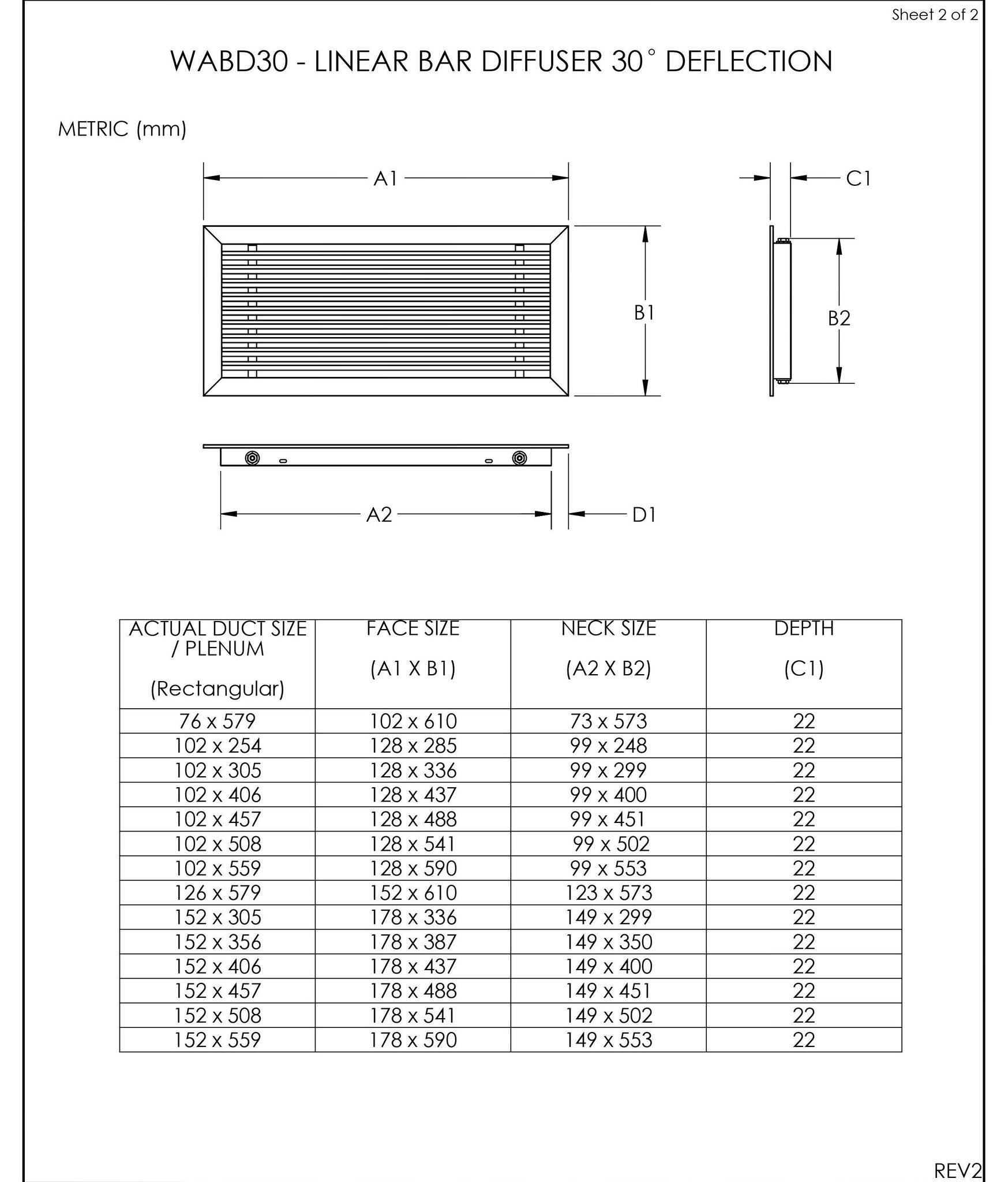

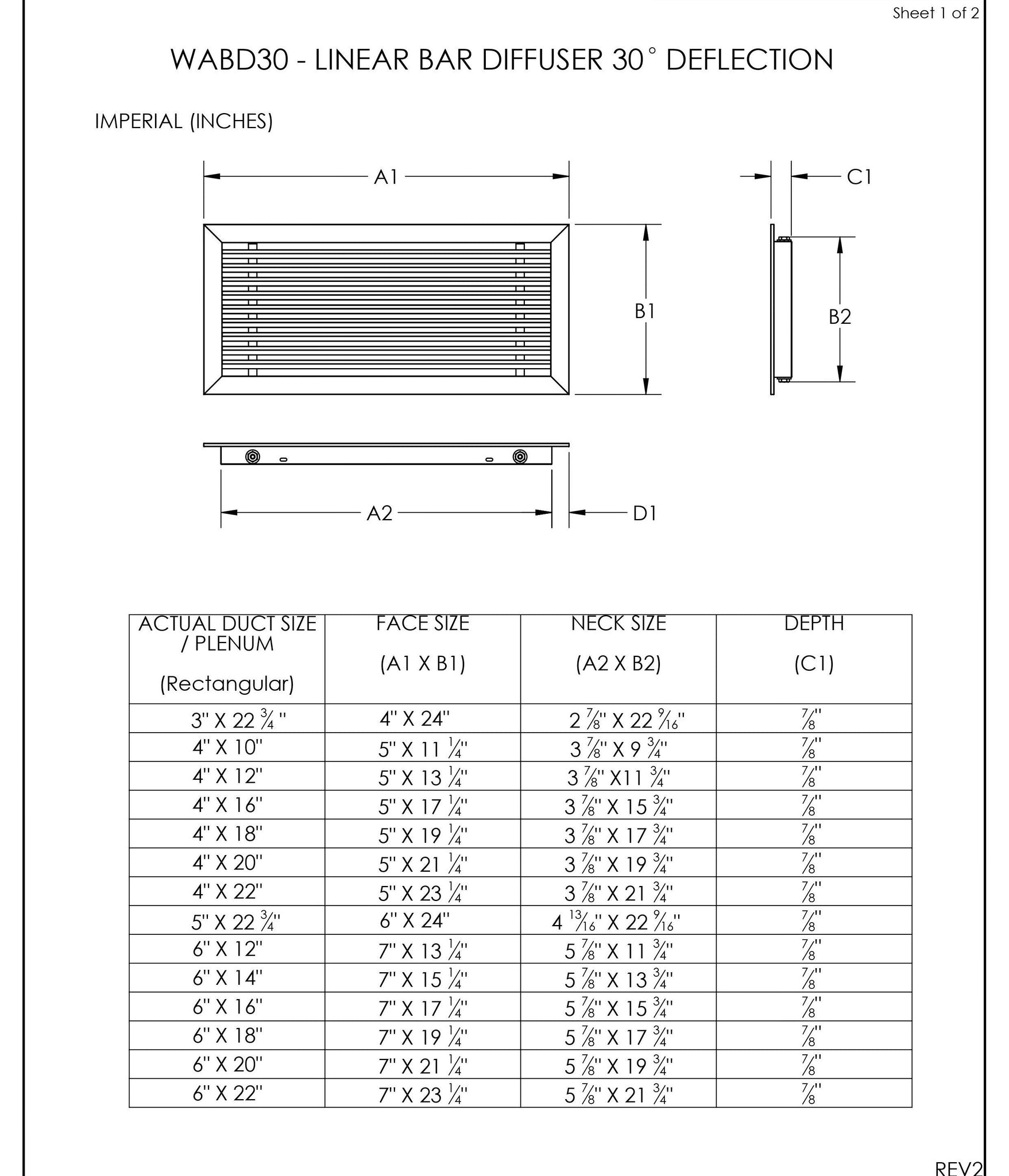

Submittal
Click here to download a high resolution of this submittal sheet
Resources
Choosing the Right Linear Bar Grille: 0°, 15°, 30°, or 45° Deflection? A Guide for Homeowners and Pros
Fixed or Removable Core? How to Choose Your Linear Bar Grille for Duct Access and Aesthetics
Why 6063-T5 Aluminum is the Gold Standard for Your Linear Slot Diffuser
CFD Airflow Analysis Services for Smarter HVAC Design
The Engineer's Guide to Commercial-Grade Air Distribution
Selecting commercial-grade HVAC grilles and diffusers is a critical engineering decision. True commercial quality requires access to detailed performance data—not just claims—to ensure your building's HVAC system operates as designed. This includes certified sound level (NC) ratings, precise pressure drop figures, and exact CFM airflow specifications for accurate system balancing. Our commitment to verifiable performance means our products are independently tested to meet industry benchmarks like ASHRAE 70-2006 and ADC1062:GRD-84. We also leverage sophisticated computer modeling to refine the aerodynamics and energy-saving potential of our linear bar grilles and diffusers, ensuring superior air distribution. For decades, Flo-Matrix HVAC has been the trusted source for engineered air distribution solutions built for demanding commercial environments. Need support on an upcoming project? Contact our technical experts at +1-604-437-1527.
Videos
Video of previous customized linear bar grilles

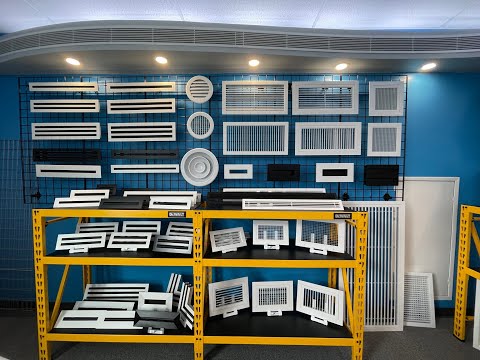

Our retail store showroom - Greater Vancouver, Canada
