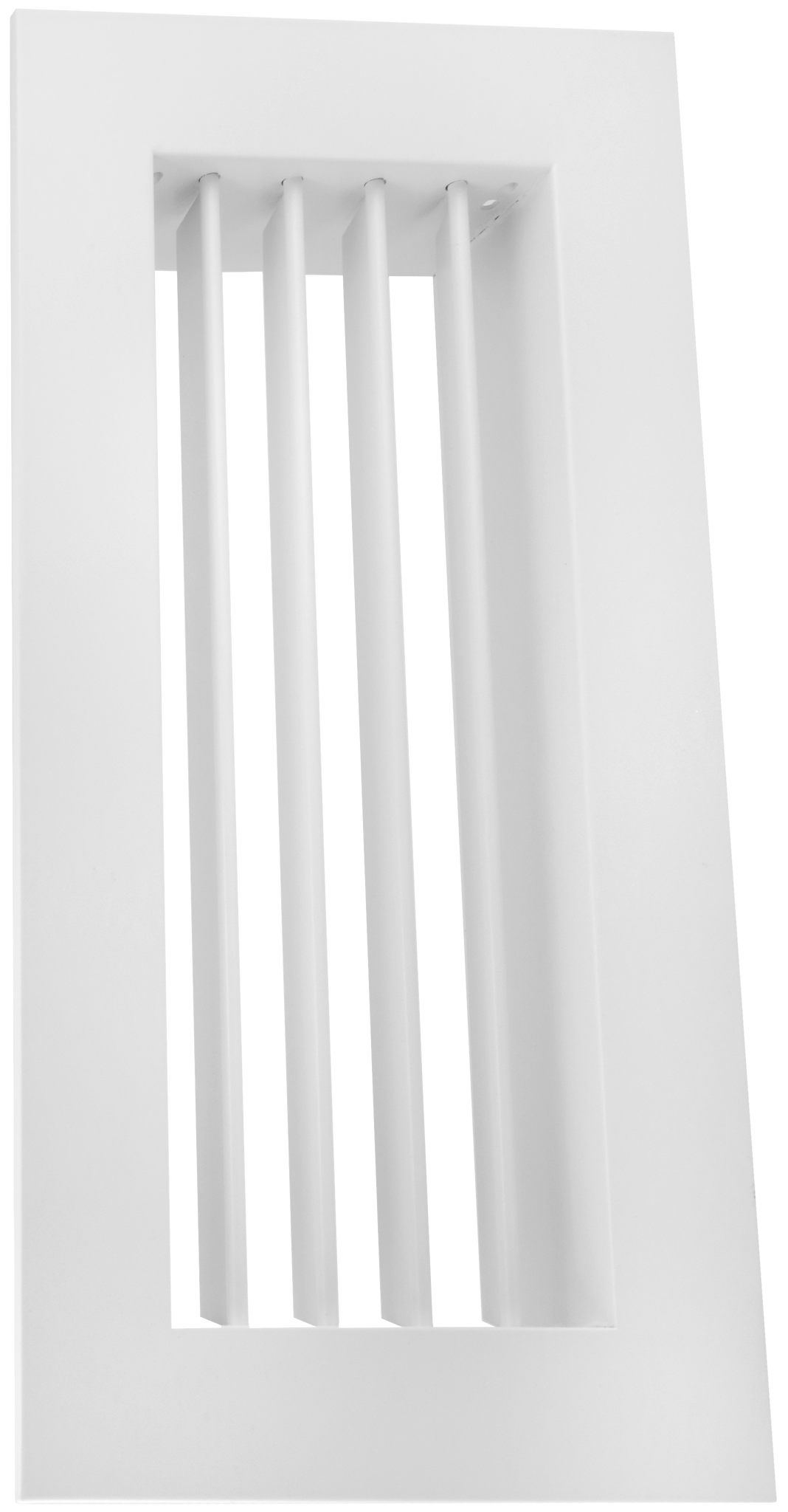

4x12" Single Deflection Grille Air Vent Cover (Vertical Blades)
4x12" Single Deflection Grille Air Vent Cover (Vertical Blades)
4x12" Single Deflection Grille Air Vent Cover (Vertical Blades) submittal
  • Load image into Gallery viewer, 4x12" Single Deflection Grille Air Vent Cover (Vertical Blades)
  • Load image into Gallery viewer, 4x12" Single Deflection Grille Air Vent Cover (Vertical Blades)
  • Load image into Gallery viewer, 4x12" Single Deflection Grille Air Vent Cover (Vertical Blades) submittal

4x12" Single Deflection Air Grille (Vertical Blades Vent Cover) - Flo-Matrix HVAC

FWASV/102x305mm/PCWS02
Regular price
$20.70 CAD
Sale price
$20.70 CAD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Details



Our architectural grade single deflection grilles are made with solid extruded aluminum. These air grilles are ideal for general air distribution and VAV applications. The adjustable deflector panes create a precise fit to improve air flow and your comfort level. This product requires installation by professionals.



  • Duct Opening Size: 4x12" (please refer to submittal below for details)
  • Vertical blades
  • There are no pre-drilled holes on the surface. Fastening has to be done on the inner border sides for an aesthetic appearance.
  • These single deflection grilles do not include fasteners.
  • Commercial Grade
  • Material: solid extruded aluminum
  • Finish: Powder coated in matte white
  • Ships from Vancouver, Canada. Shipping to USA takes 2-7 business days after dispatch (depends on delivery address).

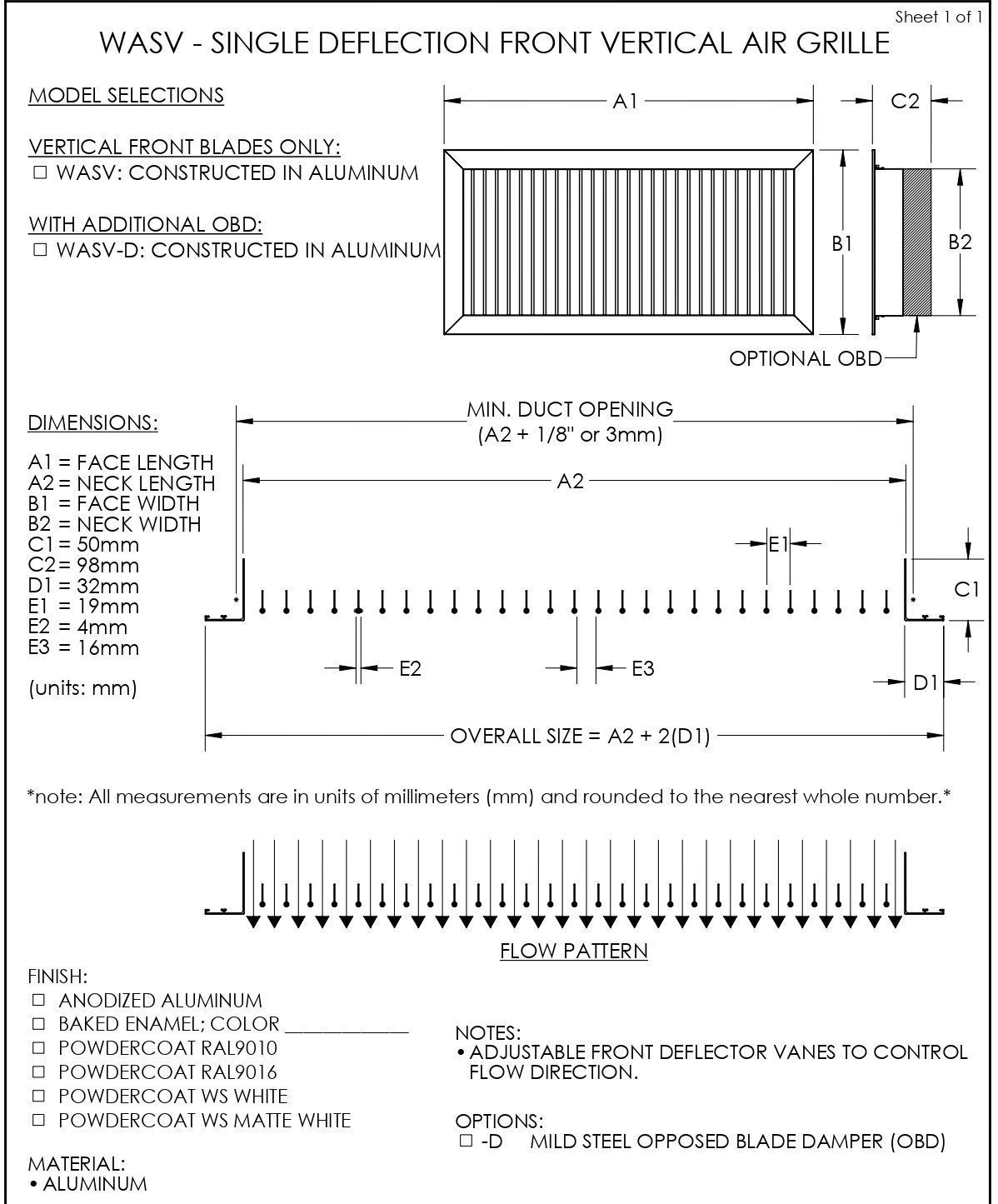

Submittal



Single deflection grille (vertical blades)





Videos



Showcase Video of Product & Demonstration of Blades Adjustment - Single Deflection Air Grille (Vertical Blades)

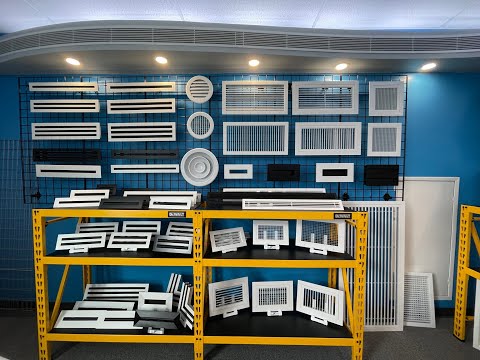

Our retail store showroom - Greater Vancouver, Canada



Our architectural grade single deflection grilles are made with solid extruded aluminum. These air grilles are ideal for general air distribution and VAV applications. The adjustable deflector panes create a precise fit to improve air flow and your comfort level. This product requires installation by professionals.



  • Duct Opening Size: 4x12" (please refer to submittal below for details)
  • Vertical blades
  • There are no pre-drilled holes on the surface. Fastening has to be done on the inner border sides for an aesthetic appearance.
  • These single deflection grilles do not include fasteners.
  • Commercial Grade
  • Material: solid extruded aluminum
  • Finish: Powder coated in matte white
  • Ships from Vancouver, Canada. Shipping to USA takes 2-7 business days after dispatch (depends on delivery address).







Single deflection grille (vertical blades)







Showcase Video of Product & Demonstration of Blades Adjustment - Single Deflection Air Grille (Vertical Blades)



Our retail store showroom - Greater Vancouver, Canada
