Details

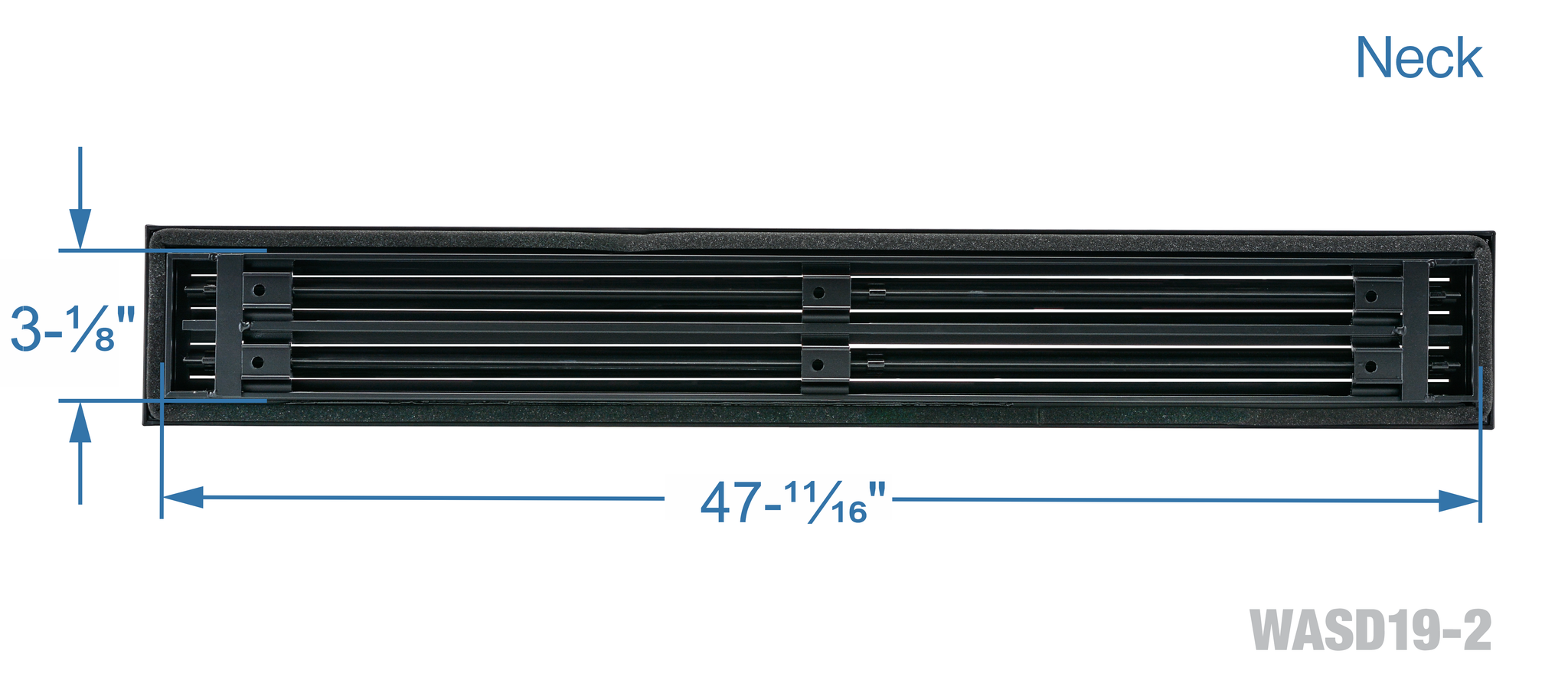

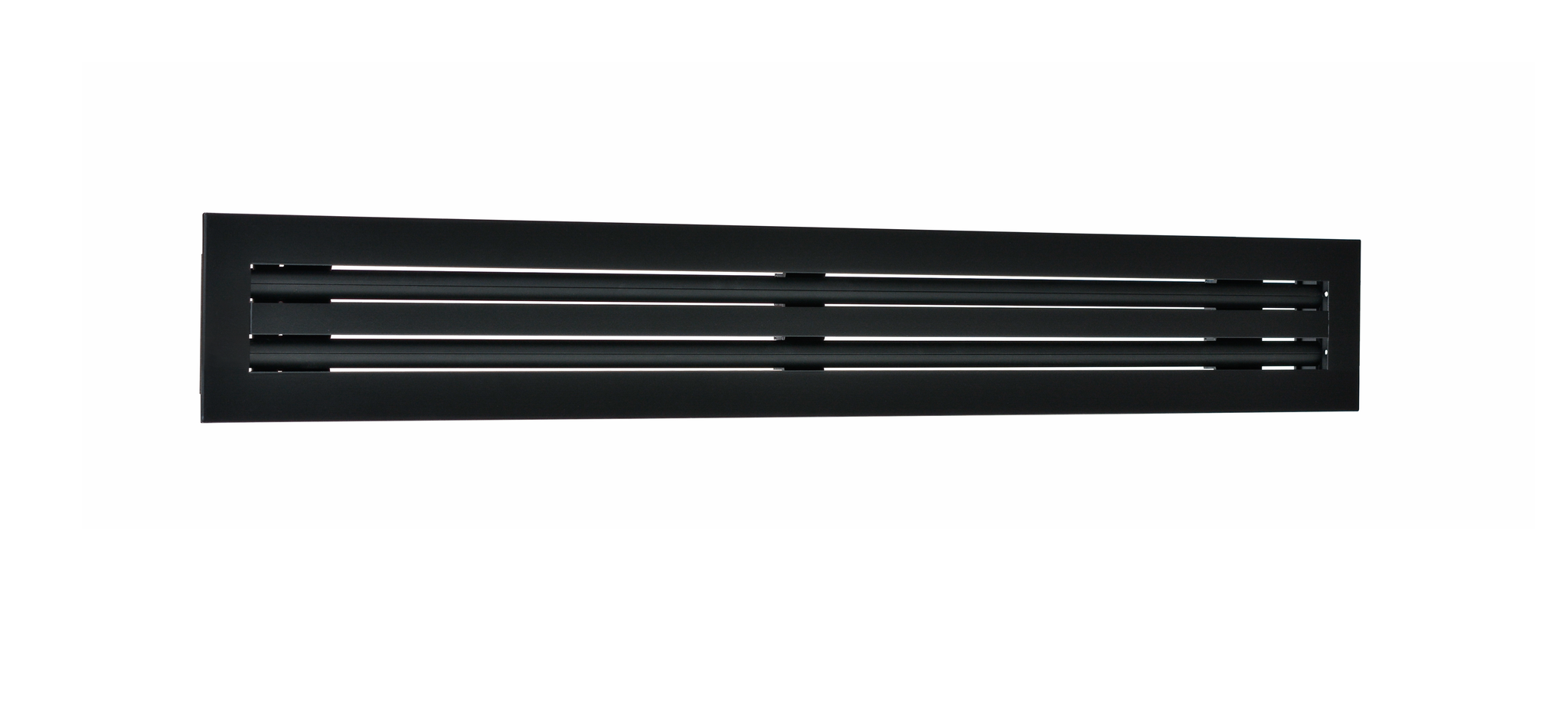

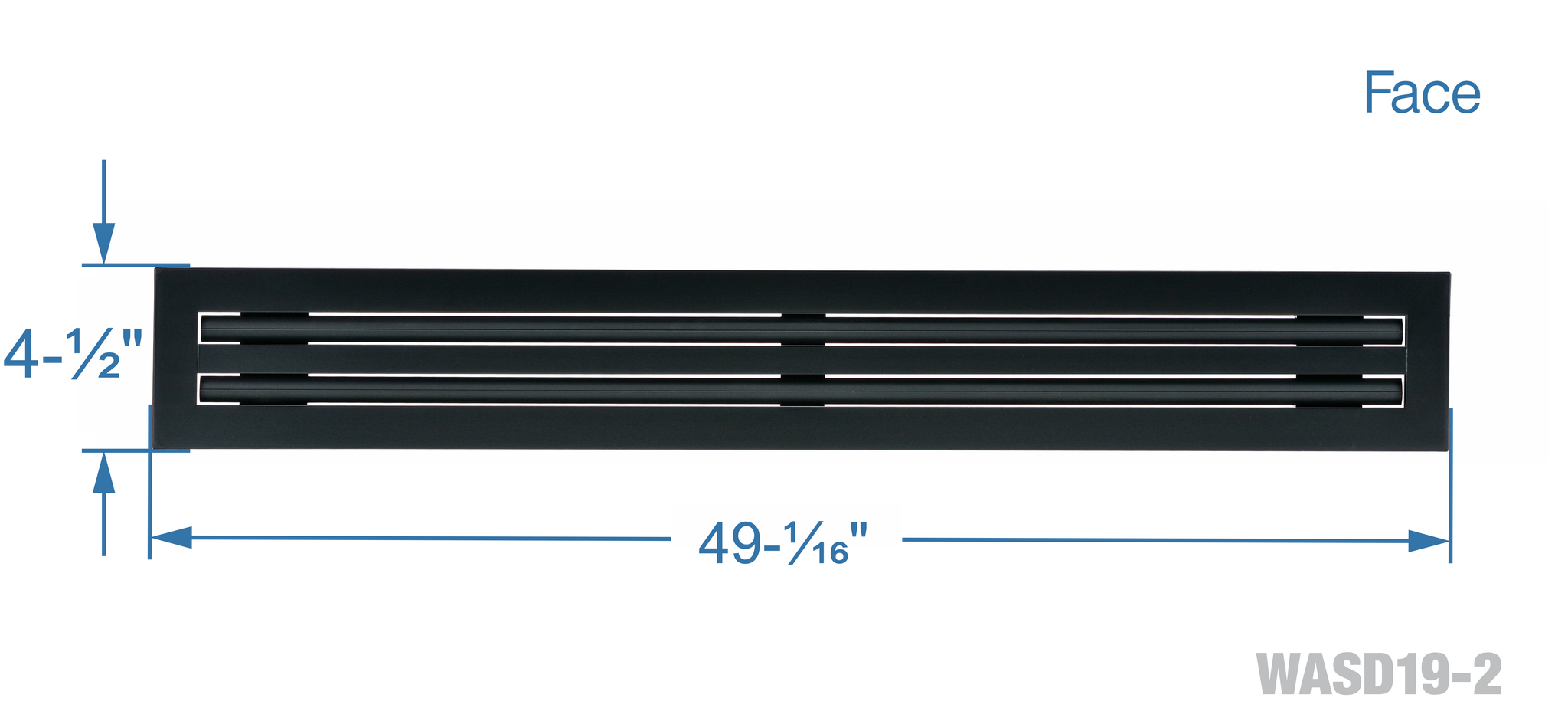

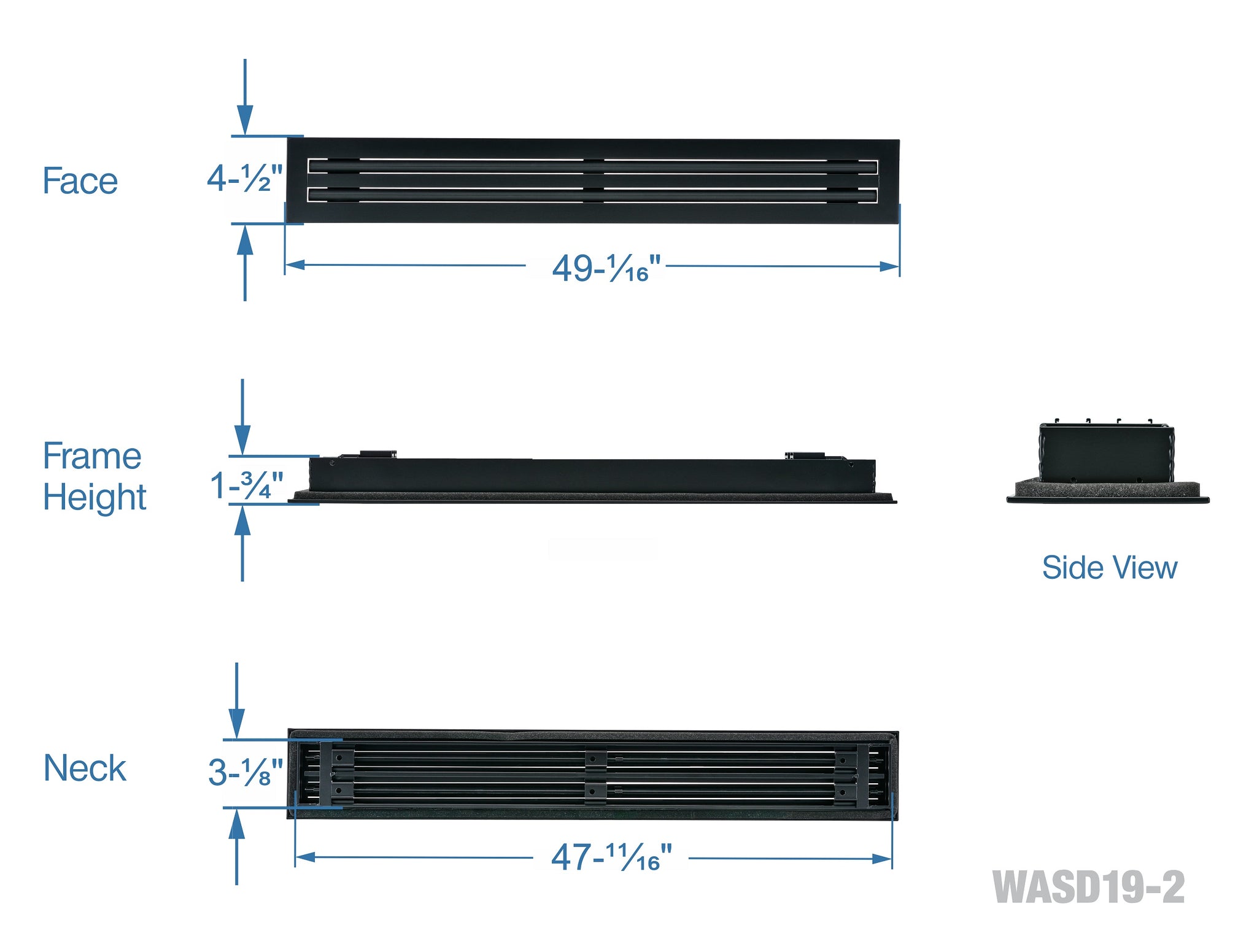

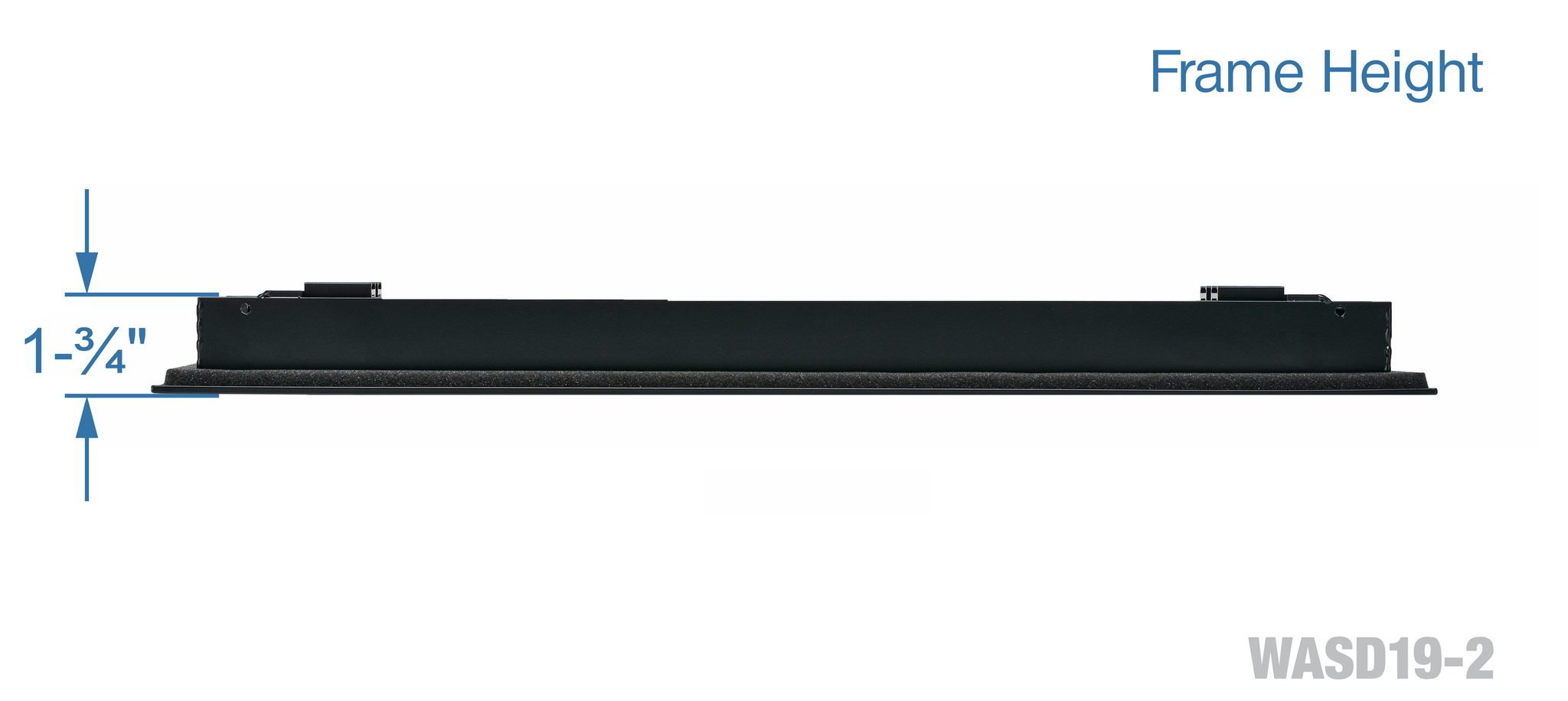

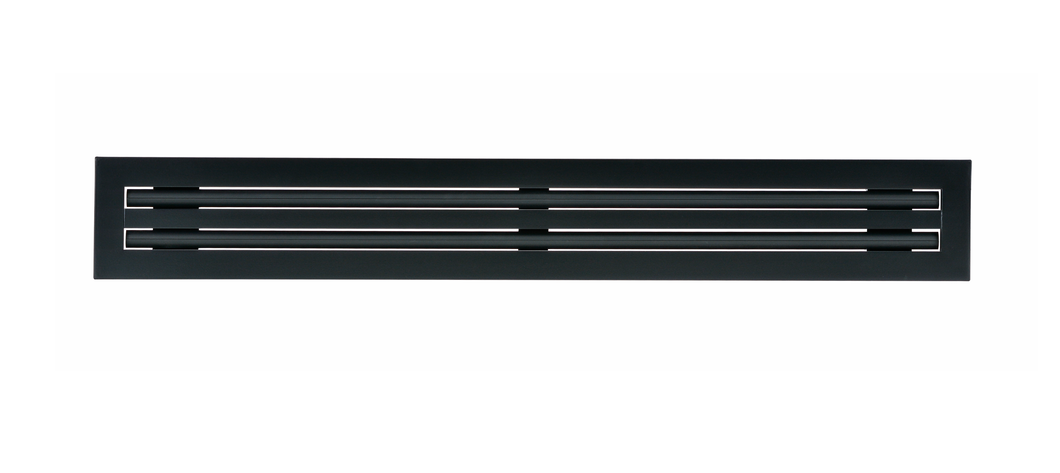

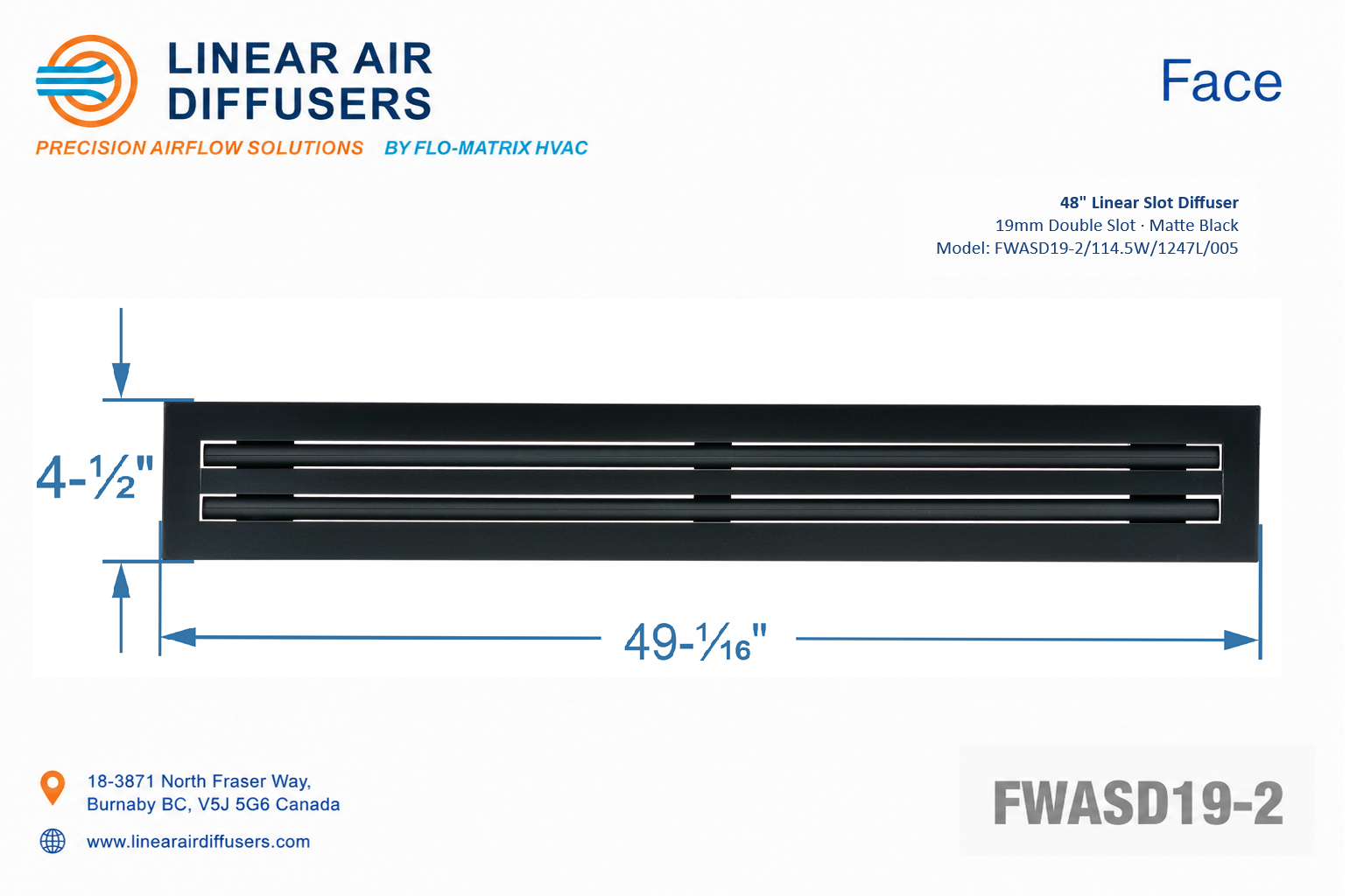

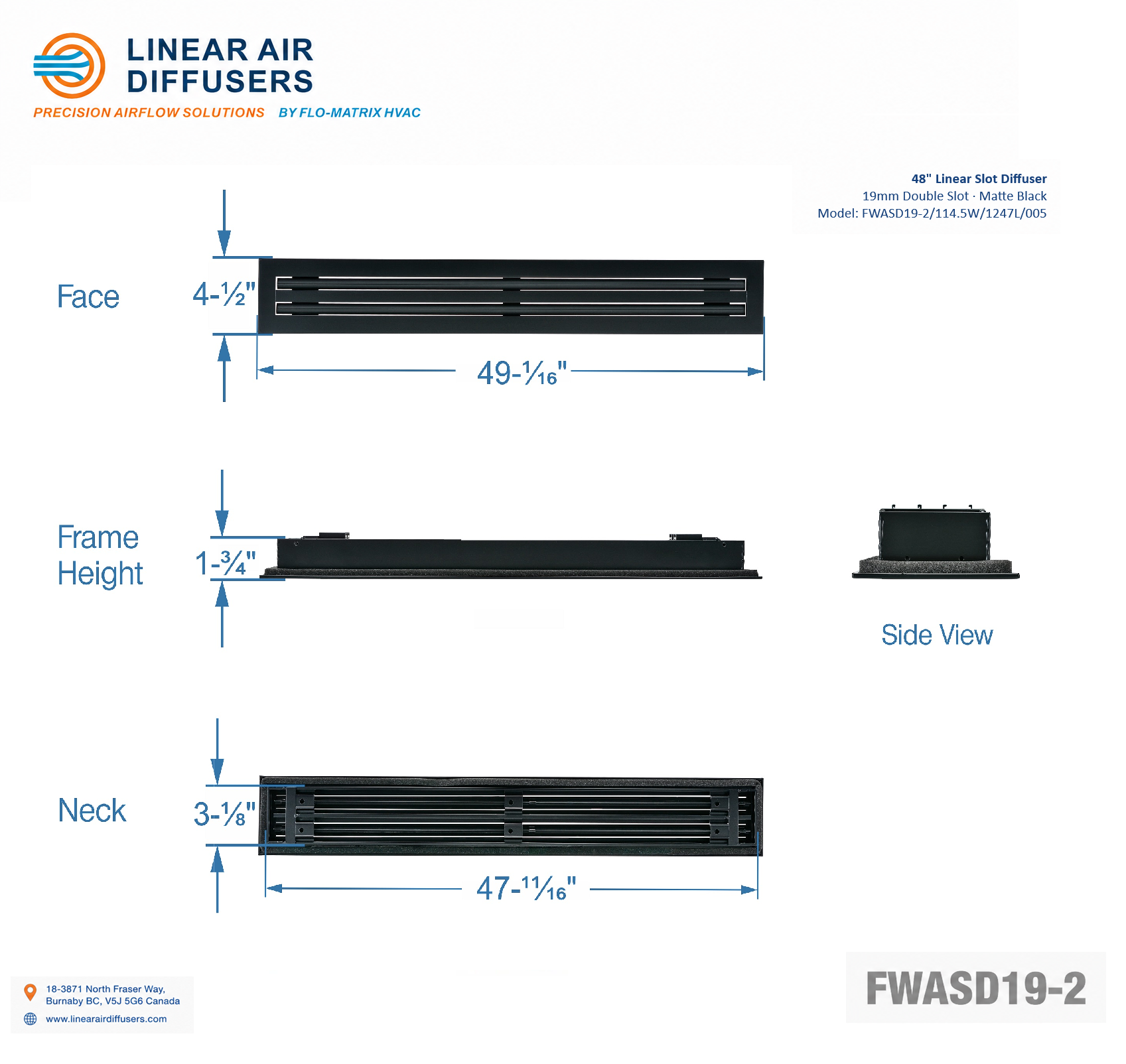

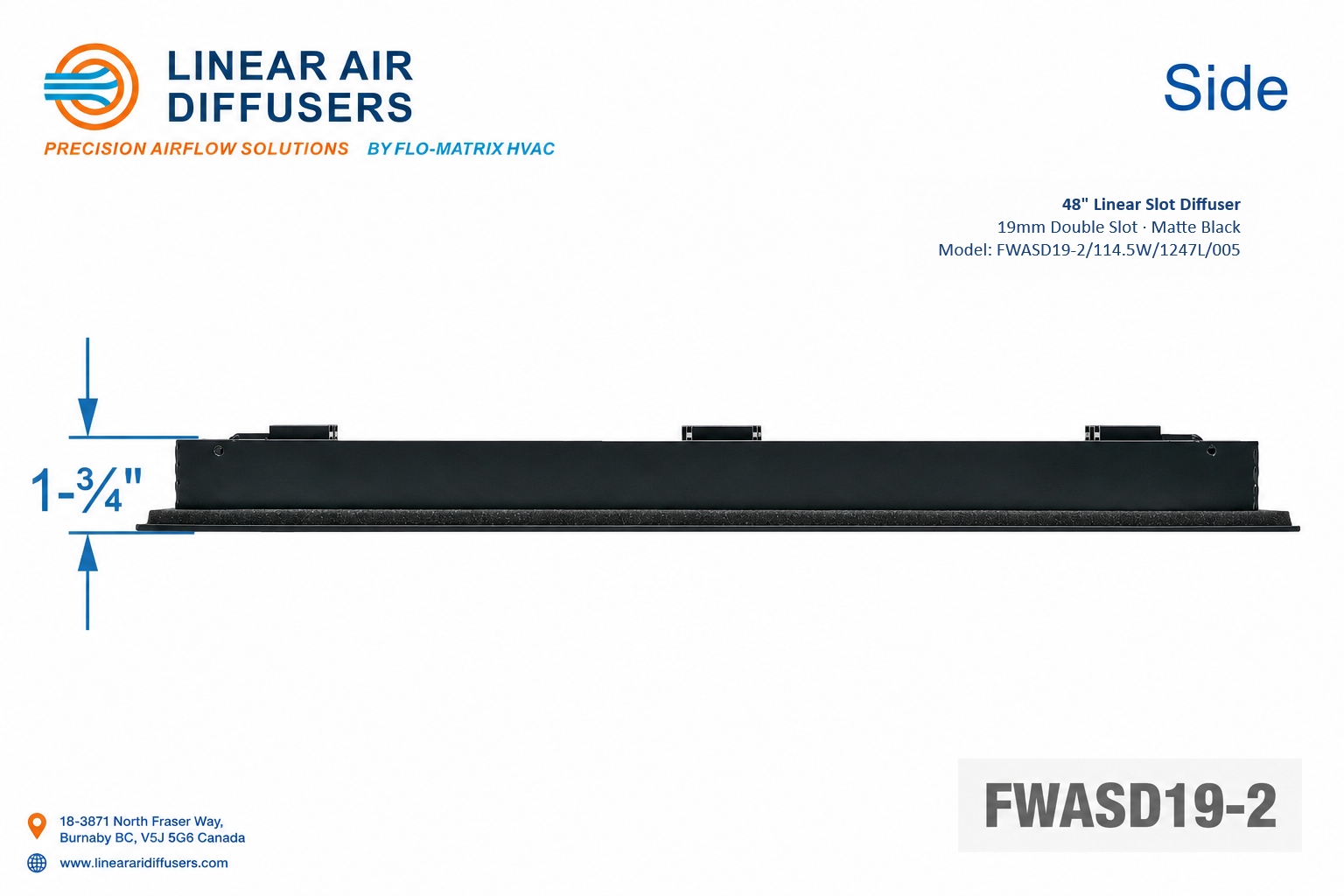

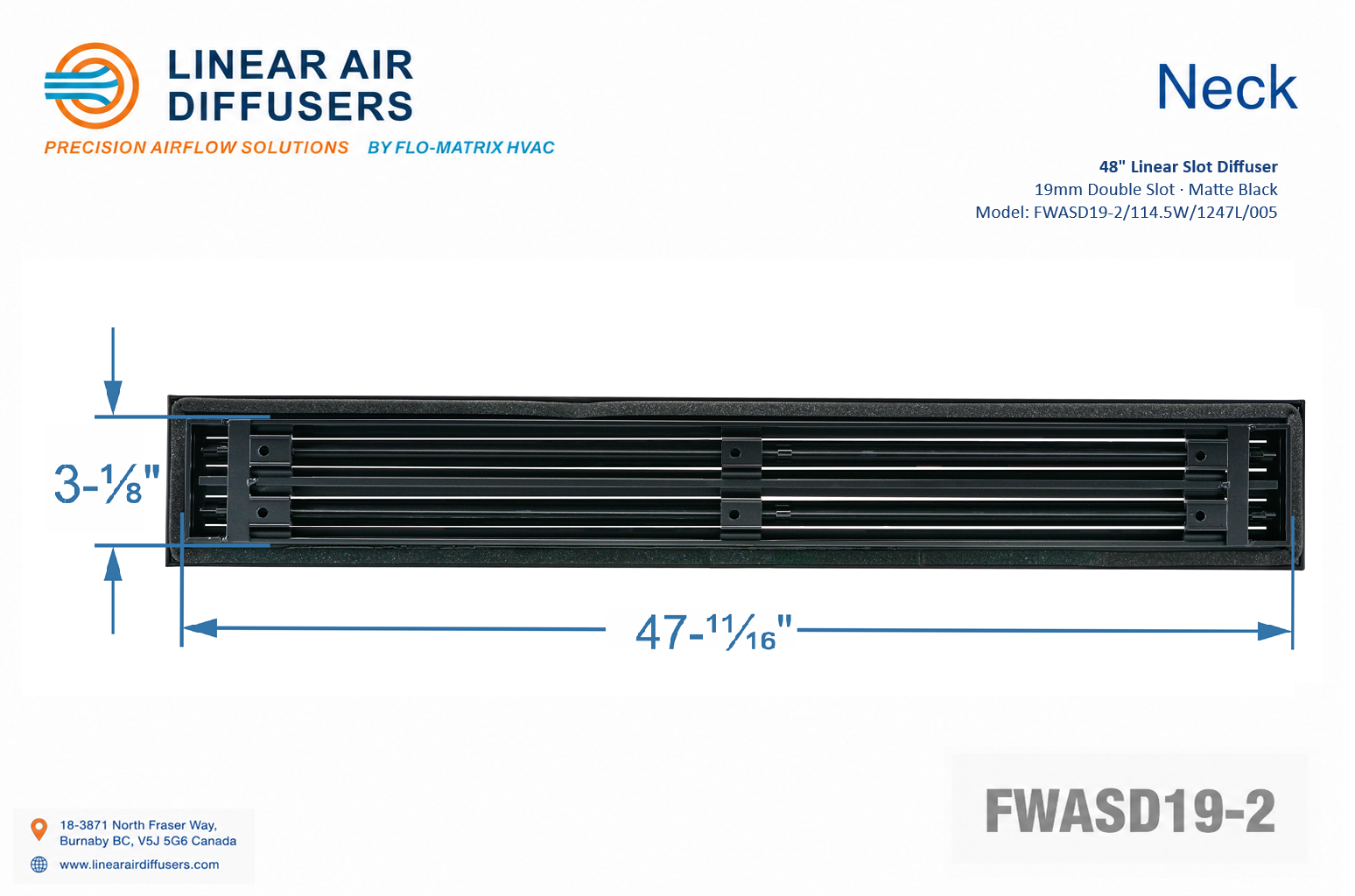

- Precision Design & Fit: With a 48" x 3¼" nominal size, this linear slot diffuser features two crisp, ¾" openings for a sharp, modern look that seamlessly integrates into any ceiling. (Check the size diagram for exact measurements).

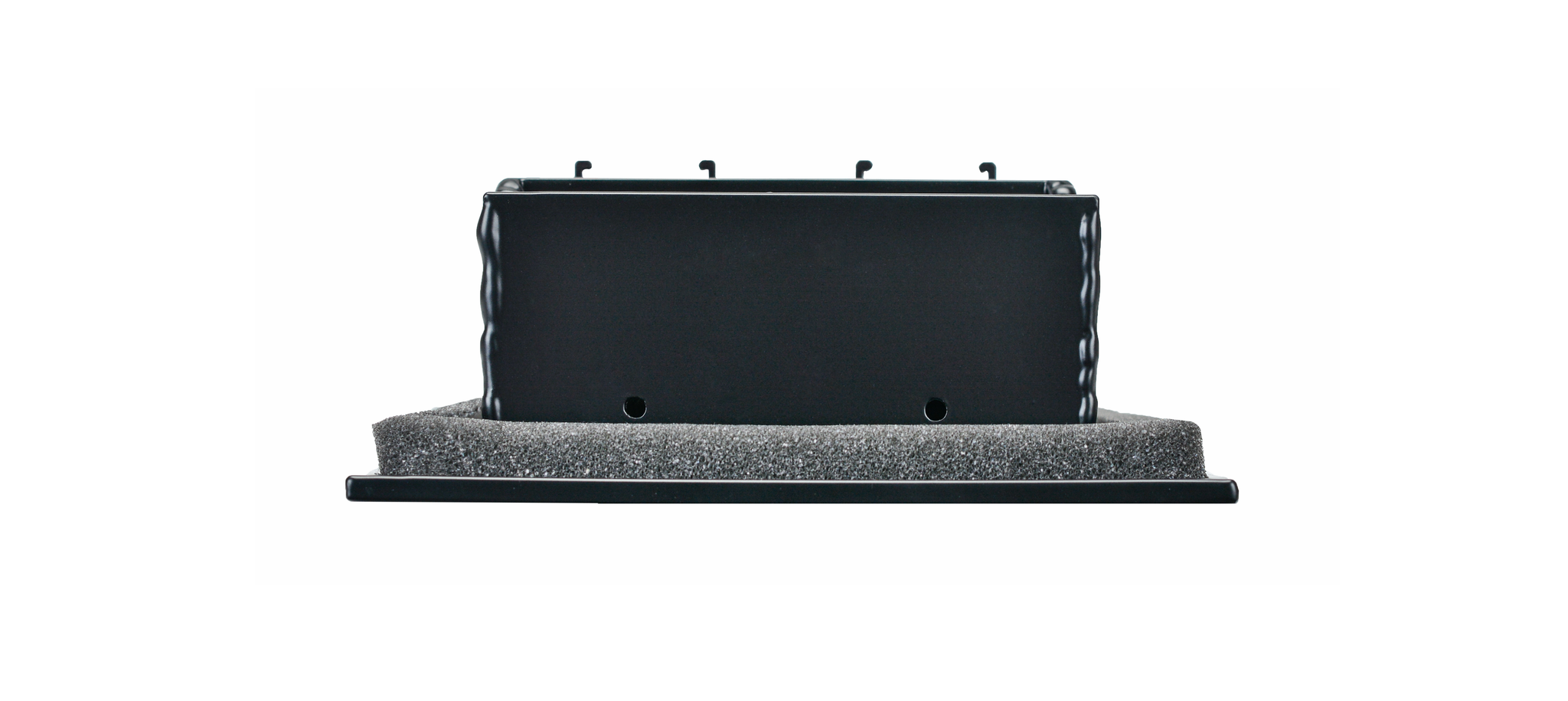

- Prevents Ceiling Smudges & Stains: A built-in gasket creates an airtight seal against the ceiling. This stops air leakage, protects your ceiling from dust marks, and ensures airflow is directed perfectly through the slotted vent covers.
- Heavy-Duty & Built to Last: : Constructed from commercial-grade 6063-T5 aluminum. It's reinforced with Tig welds to prevent cracking, chipping, or bending, guaranteeing a lifetime of reliable performance.
- Durable Matte Black Finish: Features a sleek, matte black powder coat finish. This is not only for its modern appeal but also for its exceptional resistance to corrosion, scuffs, and daily wear and tear.

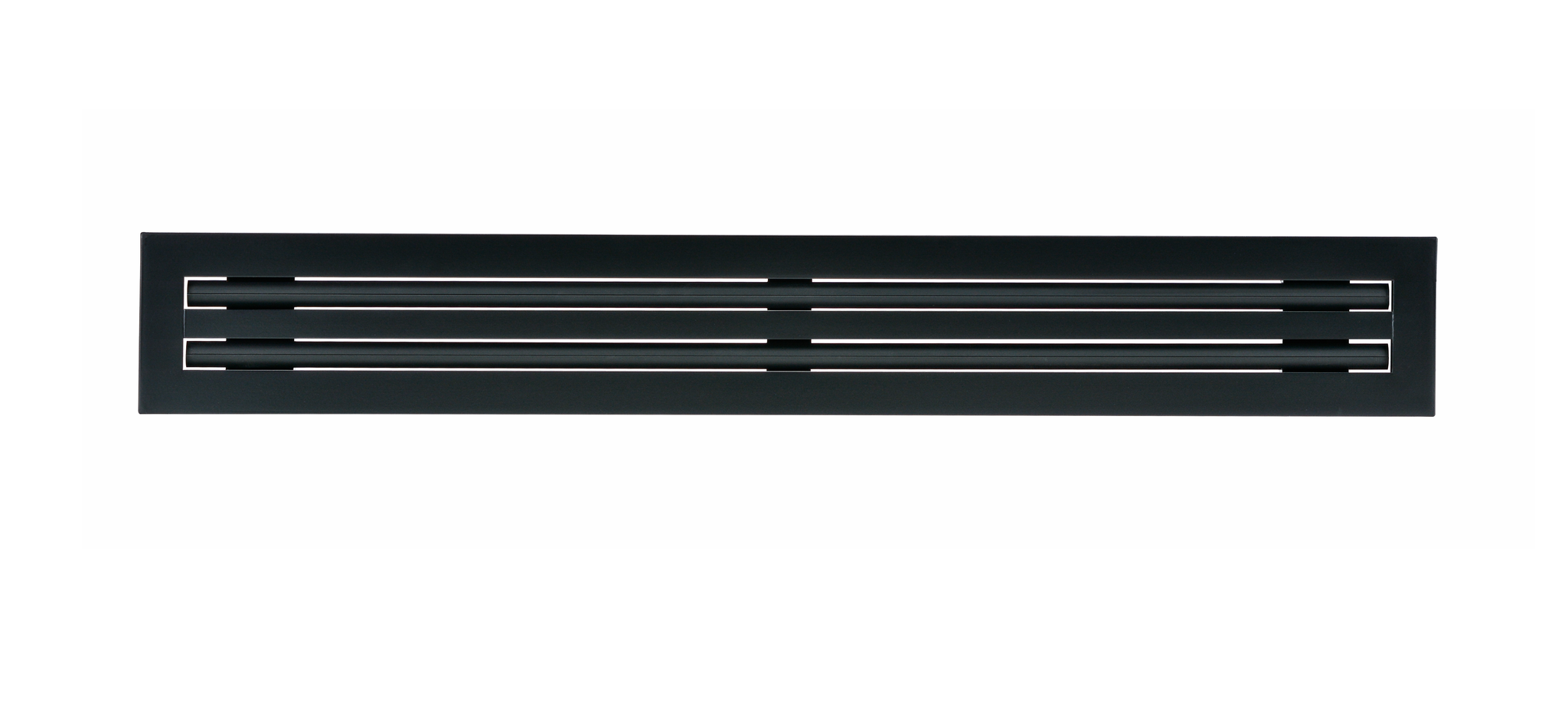

- Sleek, No-Visible-Screw Design: Achieve a clean, minimalist installation with no screws showing on the face of the register. All fastening points are cleverly hidden on the inner sides for a flawless finish. (Please note: fasteners are not included).
- Tailor Your Airflow: For ultimate control, easily pair this unit with a custom plenum box (sold separately) to fine-tune performance for any HVAC system. See our video guide to learn more about plenum options.
- Quick Shipping from North America: We ship from our warehouse in Vancouver, Canada. Most orders to the U.S. arrive within 2-7 business days after shipping.
Performance
| Performance Data | ||
|
Flow Rate (CFM) |
Static Pressure (in.wg) | Noise Level (NC) |
|
257 |
0.09 |
20 |
| * Flow rate (CFM) and static pressure (in.wg) are interrelated. It is crucial to know your HVAC system total or static pressure when choosing the proper GRD for optimal performance. |
Submittal
Click here to download a high resolution of this submittal sheet
Resources
Our Guide to 19mm VS. 25mm Slot Width Differences
Linear Slot Diffusers: The Smart Choice for Modern HVAC Systems
CFD Airflow Analysis Services for Smarter HVAC Design
The Key Characteristics of Commercial-Grade Air Distribution Products
Commercial-grade grilles, registers, and diffusers are defined by one crucial element: complete and accurate technical data. This information empowers architects, engineers, and HVAC contractors to make informed decisions, providing clear details on material grades and comprehensive performance specifications like noise levels (NC), airflow capacity, and pressure drop.
We ensure our products meet this high bar through rigorous testing in accordance with ASHRAE 70-2006 and ADC1062:GRD-84. Our development process harnesses the power of computational fluid dynamics (CFD) to innovate and improve, resulting in designs that maximize energy efficiency and airflow control.
We have manufactured premium linear slot diffusers (1-12 slot options) for the commercial HVAC industry since 1997. For personalized guidance tailored to your project’s needs, please contact our product specialists at +1-604-437-1527.
