Details

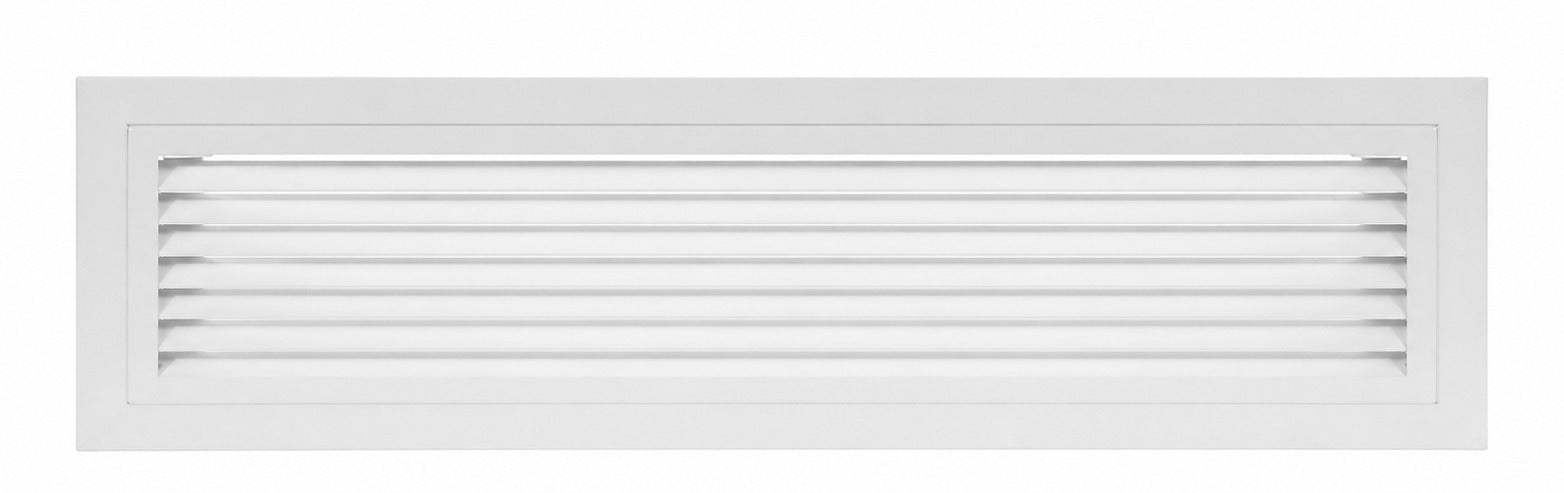

24x8 inch hinged 35-degree deflection return air grille – this wall or ceiling register pairs a convenient swing-out hinged frame with adjustable fixed return blades set at a 35-degree angle. Unlike standard return air grilles that typically use 45-degree blades, this higher-tier product uses a 35-degree pitch that is noticeably less restrictive, delivering enhanced airflow performance while maintaining minimal see-through. The reduced blade angle improves air intake efficiency without compromising structural integrity.
Why is a 35-degree deflection considered a higher-tier product than the standard 45-degree? The answer comes down to material and craftsmanship. A 35-degree blade requires deeper extrusion profiles and more aluminum material to achieve the same structural rigidity as a steeper 45-degree blade. The shallower the angle, the longer the blade span must be to cover the same opening—which means more metal, heavier gauge extrusions, and tighter tolerances during fabrication to prevent blade deflection or warping over time.
Additionally, achieving consistent airflow performance at 35 degrees demands more precise engineering. The reduced angle creates less natural restriction, which is great for airflow efficiency, but it also means the blades must be machined and assembled with greater accuracy to avoid unwanted see-through or air bypass. This level of precision requires better tooling, slower production speeds, and more rigorous quality control compared to standard 45-degree air grilles. The result is a grille that performs better, lasts longer, and justifies its place as a premium offering.
The hinged frame swings open easily to provide convenient access for filter changes, duct cleaning, or damper adjustments without requiring removal of the entire assembly. This unit can be configured for either supply or return applications, offering versatility for various HVAC system requirements. Whether you're managing a commercial sidewall installation or need a clean ceiling mount solution, this louvered grille integrates smoothly with most surface mount applications.
- Standard 24x8" Duct Compatibility: Precision-sized for 24x8" duct openings.
- 35-Degree Fixed Deflection: Unlike standard 45-degree return air grilles, the 35-degree blade angle is less restrictive, delivering superior airflow performance while keeping see-through to a minimum.

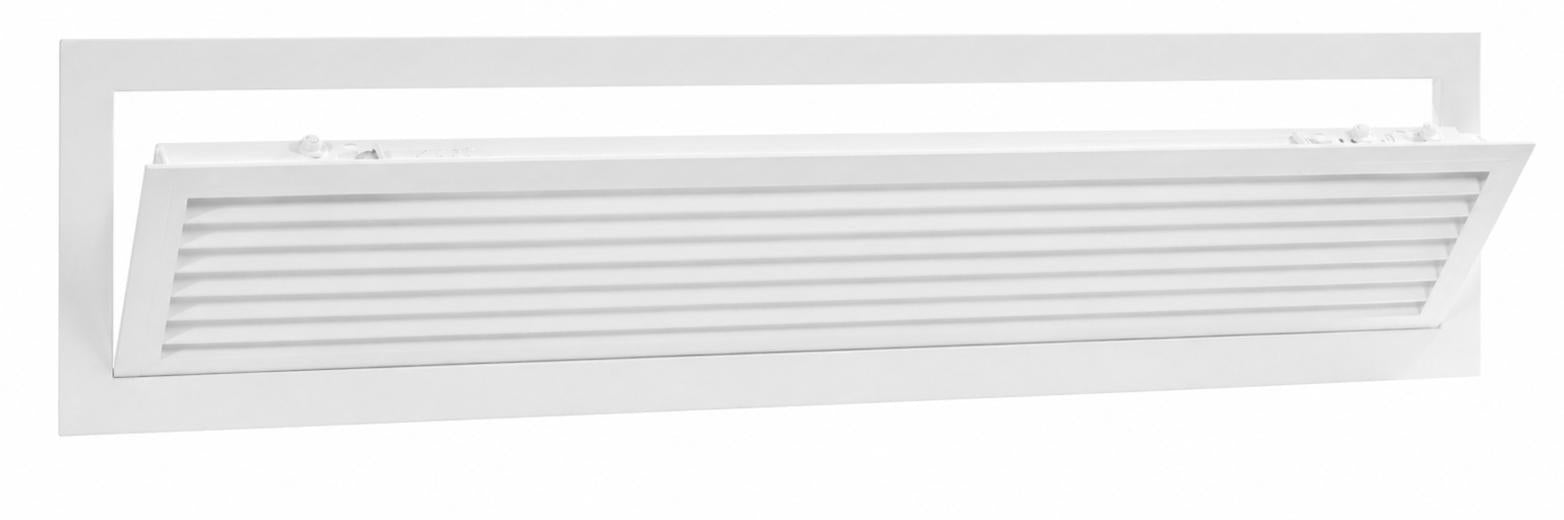

- Hinged Front for Easy Access: The entire grille face swings open on durable hinge pins, allowing quick access to duct interiors, dampers, or filters. No tools required for routine checks.
- Stop Dust Streaks and Bypass Leaks: Our integrated foam seal forms an effective barrier against the mounting surface when closed, blocking air bypass that causes ceiling or wall discoloration over time.
- Clean, No-Fastener Face: All mounting hardware hides behind the hinged frame, preserving a sleek, professional appearance. The hinge mechanism sits flush to maintain the clean aesthetic.
- Sturdy Aluminum Construction: Fabricated from 6063-T5 architectural aluminum, this grille resists warping, corrosion, and daily mechanical stress from repeated opening and closing.
- Durable Matte White Coating: The powder coat finish resists yellowing, scratches, and humidity damage, keeping the grille looking new for years.
- Simple Installation: Works with standard duct collars and mounting surfaces. Install the frame, then swing the face closed. No complex assembly required.
- Custom Plenum Boxes Available: Need a perfect fit for unique duct connections? We offer custom-fabricated plenum boxes (sold separately) to match your specific dimensions and configuration.
- Ships worldwide from our Vancouver, Canada facility. Local pickup is also available at our showroom.
Looking for vent covers in custom sizes? Request a quote for custom hinged air grilles and plenums to get pricing, lead times, and support for your project.
Performance
Resources
Why 6063-T5 Aluminum Is Ideal for High-Quality Vent Covers
CFD Airflow Analysis Services for Smarter HVAC Design
Why Commercial-Grade HVAC Components Make Sense – Even for Residential Projects
You might think commercial-grade HVAC gear is only needed for big office buildings or retail spaces. But here's the thing — a lot of what makes those products reliable actually works great in homes too.
For architects and engineers, specifying commercial-grade components on large jobs is standard practice. But for homeowners? That same level of engineering translates into quieter operation, better airflow control, and fewer callbacks down the road.
When you go with true commercial-grade vent covers and diffusers, you're not just paying for heavier materials. You're getting real data. Sound levels (NC ratings), pressure drop numbers, and exact CFM airflow figures — all backed by independent testing.
We're talking about standards like ASHRAE 70-2006 and ADC1062:GRD-84. These aren't just stamps on a box. They mean someone actually put the product through verified lab testing to confirm how it performs.
On top of that, we use computer modeling to dial in air distribution and energy efficiency for our linear bar grilles and diffusers. So whether you're installing in a quiet master bedroom or a high-traffic commercial lobby, the airflow is consistent and reliable.
So who actually buys this stuff?
- Luxury home builders who want HVAC performance to match the rest of the house
- Homeowners replacing cheap residential grilles that whistle or rattle
- Engineers specifying for high-end commercial or multi-family projects
- Anyone tired of guessing whether a vent will perform as advertised
At the end of the day, Flo-Matrix HVAC builds commercial-grade components that happen to work beautifully in residential settings. Better craftsmanship. Verified performance. No guesswork.
Got a project in mind? Call our specialists at +1-604-437-1527 to talk through what you need.
