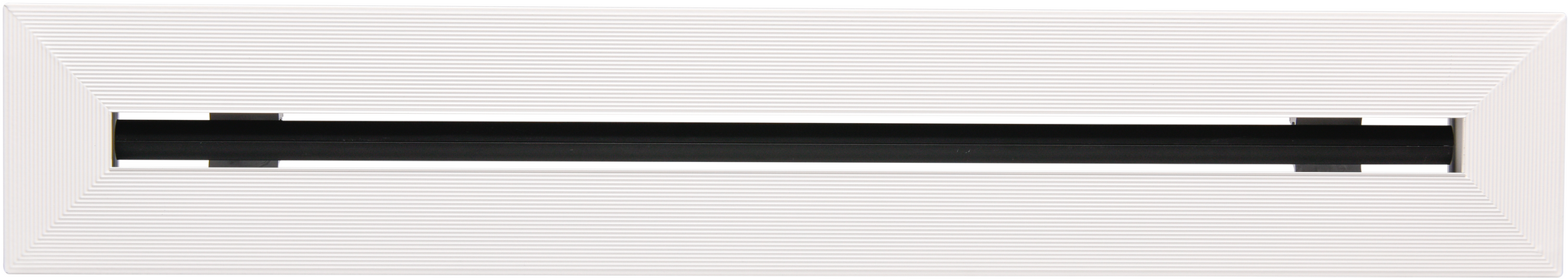

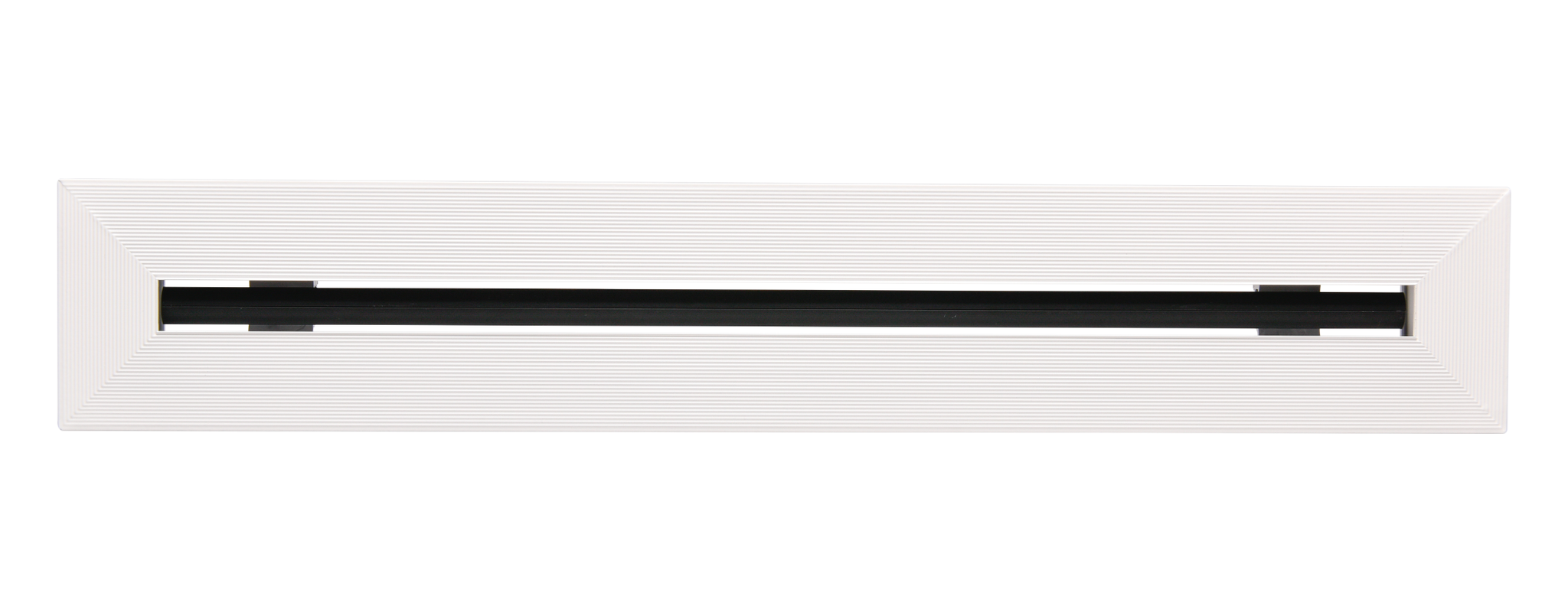

24" Mud In Flange Linear Slot Diffuser HVAC air vent cover

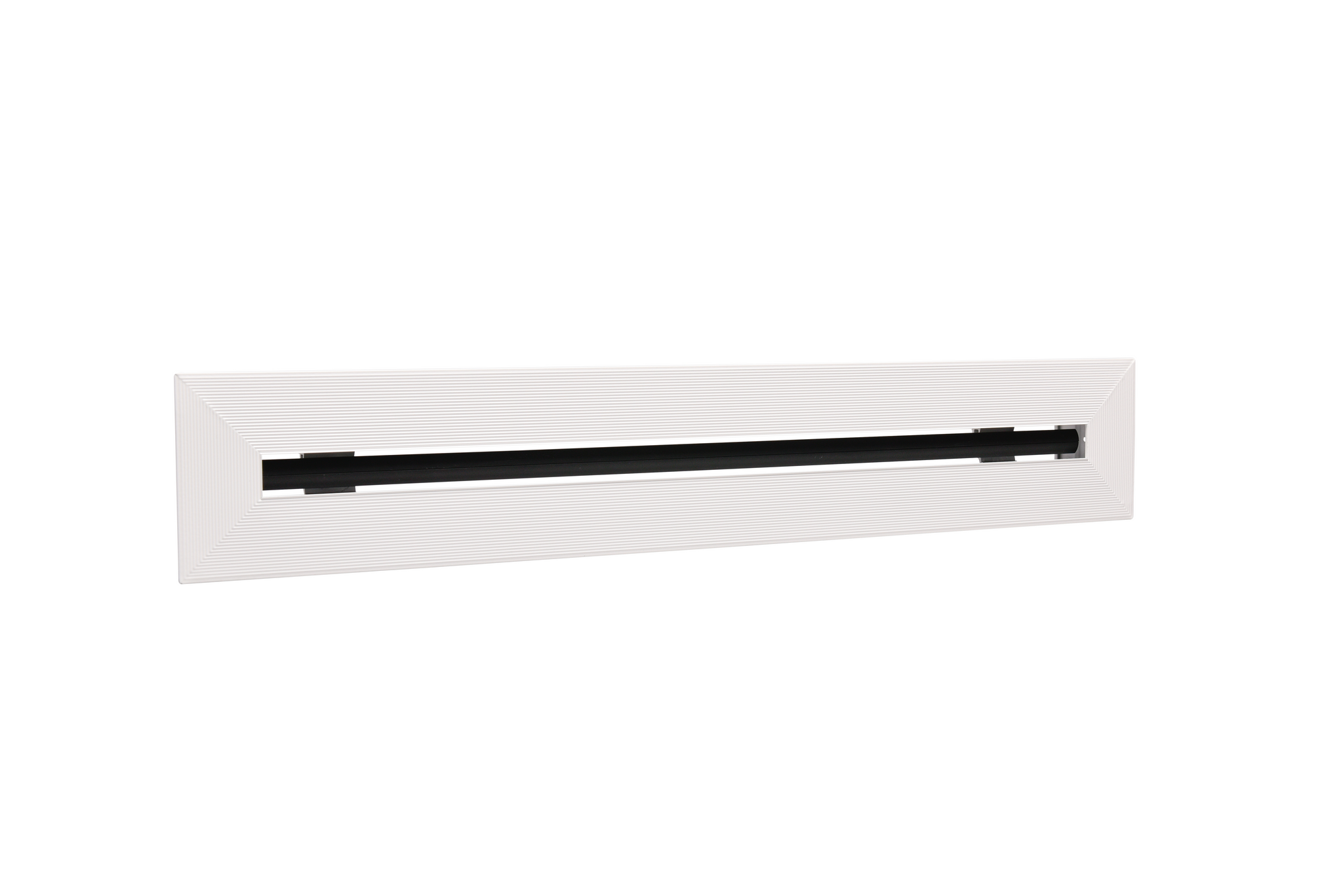

24" Mud In Flange Linear Slot Diffuser HVAC air vent cover

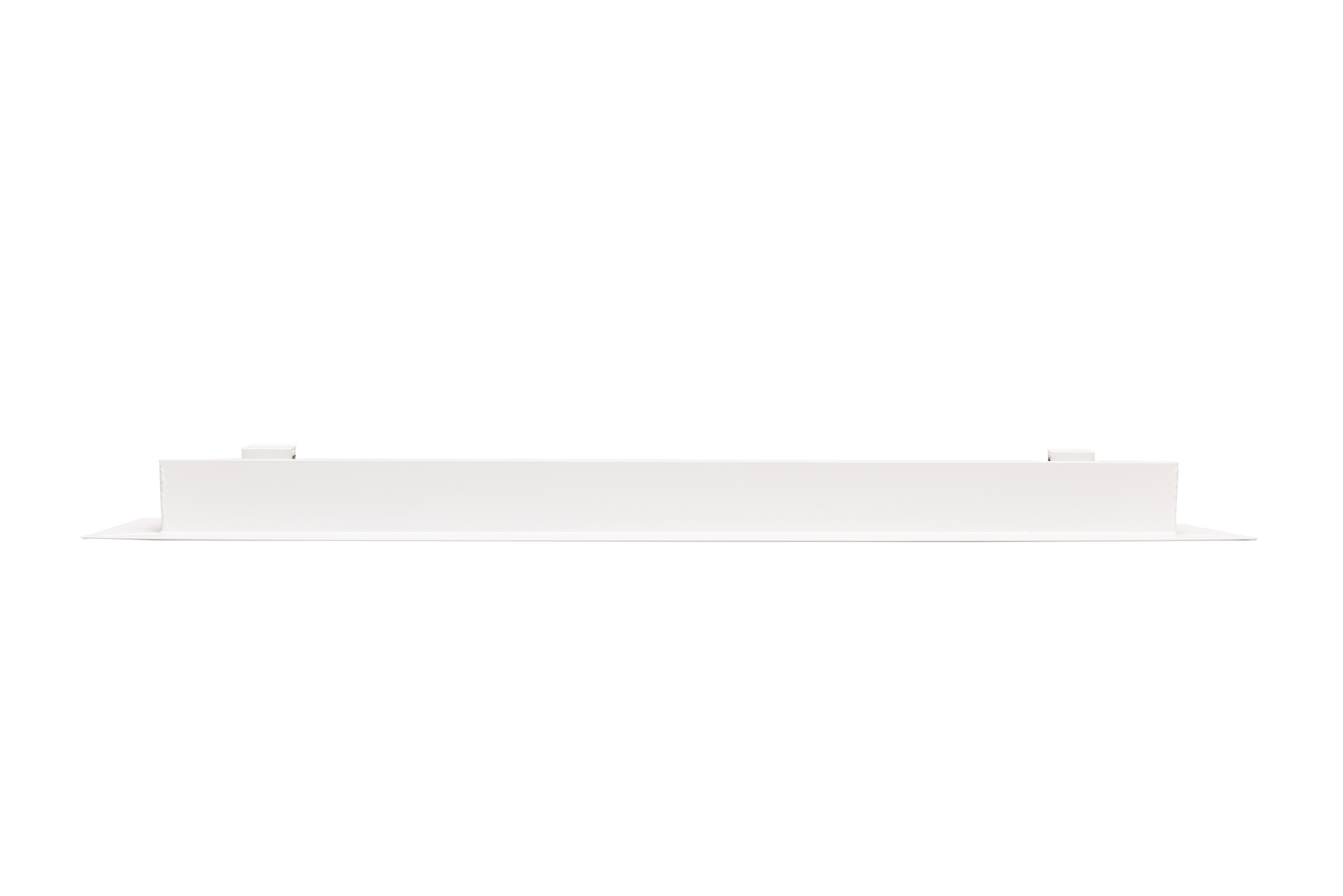

24" Mud In Flange Linear Slot Diffuser HVAC air vent cover

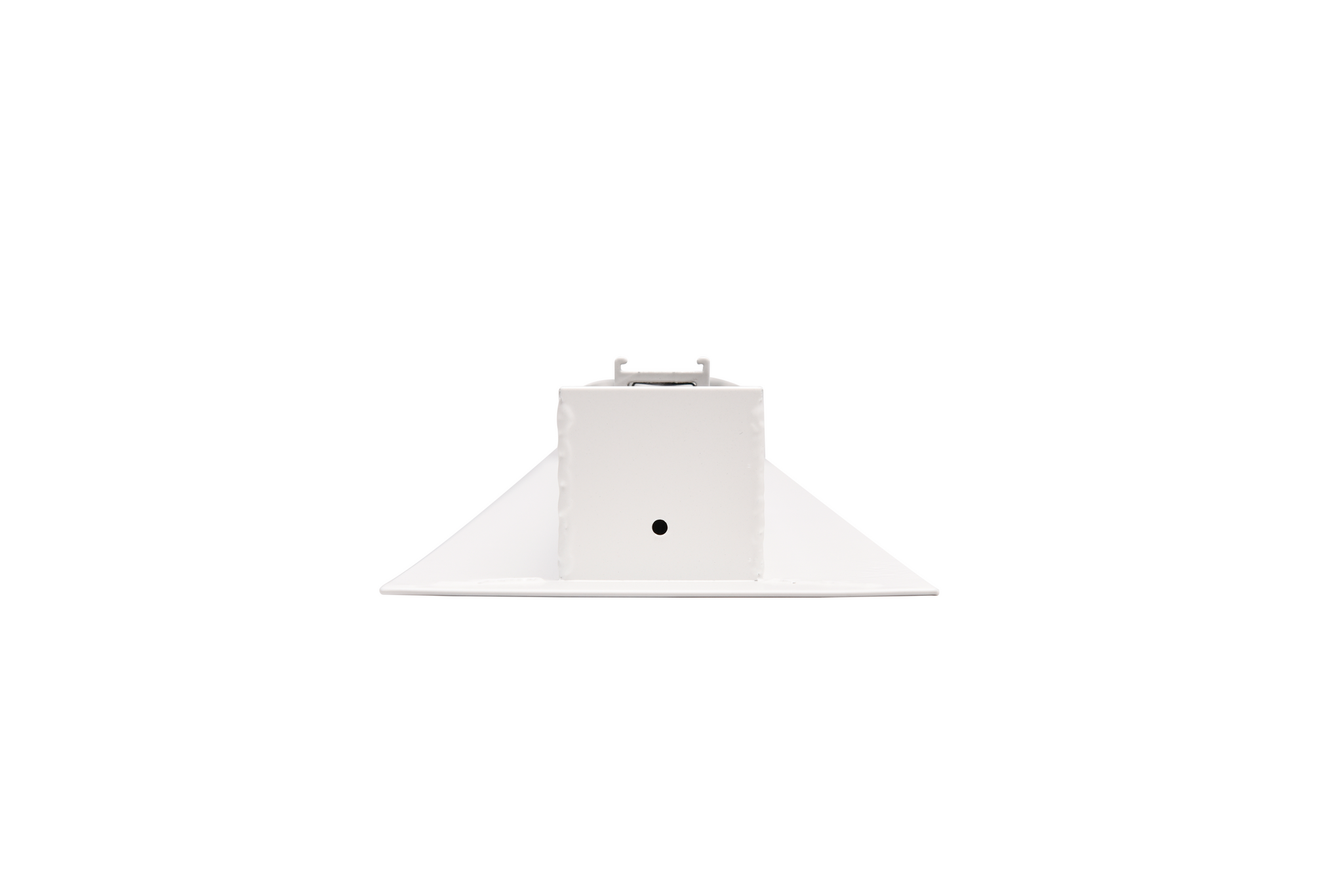

24" Mud In Flange Linear Slot Diffuser HVAC air vent cover

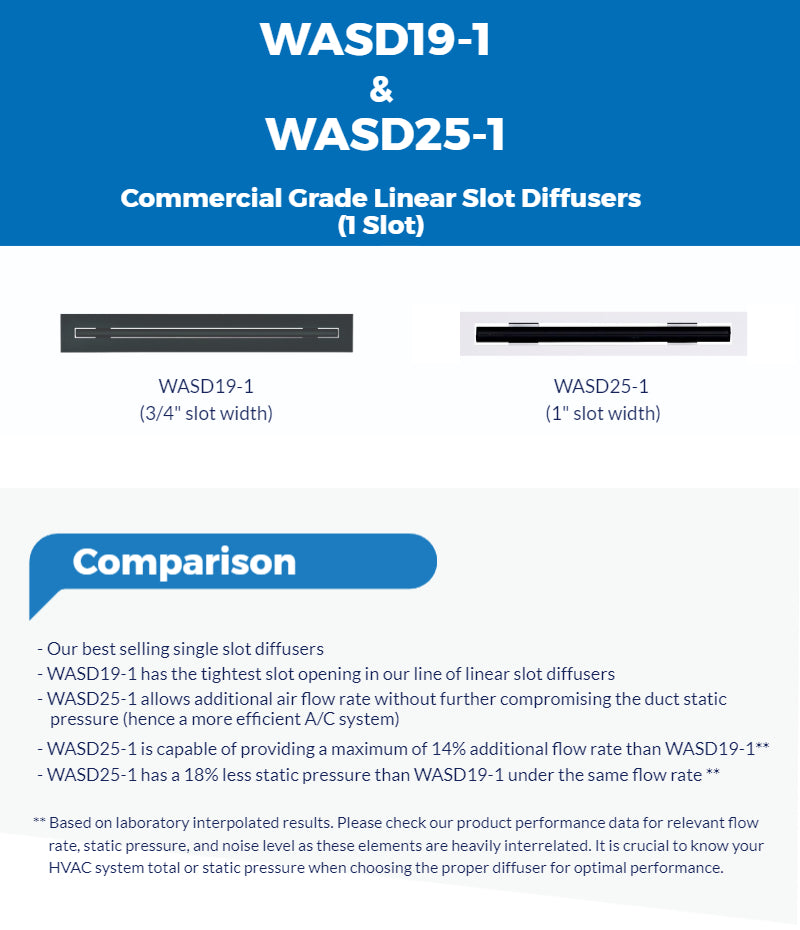

24" Mud In Flange Linear Slot Diffuser HVAC air vent cover comparison
Mud in flange flushed linear slot diffuser submittal
  • Load image into Gallery viewer, 24" Mud In Flange Linear Slot Diffuser HVAC air vent cover
  • Load image into Gallery viewer, 24" Mud In Flange Linear Slot Diffuser HVAC air vent cover
  • Load image into Gallery viewer, 24" Mud In Flange Linear Slot Diffuser HVAC air vent cover
  • Load image into Gallery viewer, 24" Mud In Flange Linear Slot Diffuser HVAC air vent cover
  • Load image into Gallery viewer, 24" Mud In Flange Linear Slot Diffuser HVAC air vent cover comparison
  • Load image into Gallery viewer, Mud in flange flushed linear slot diffuser submittal

24" Mud In Flange (Flush Installation) Linear Slot Diffuser Vent Cover (1 Slot with 25mm Opening) - Matte White - FLO-MATRIX HVAC

FWASD250101B/115W/673L/PCWS02
Regular price
$69.49 CAD
Sale price
$69.49 CAD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Details


Our linear slot diffusers are architectural grade made with solid extruded aluminum where durability is a major concern. They are ideal for general air distribution and VAV applications. The 25mm slot width is equipped with adjustable blades for up to a 180° air pattern. Please watch our smoke test video below for air distribution performance. We recommend installation by professionals for this product.



  • Nominal Size: 24" x 2" (please refer to the size chart below for details)
  • Generous grooved pattern to provide ease of concealing with drywall filler plaster material for a seamless finish.
  • The slot opening is 1" inch (25mm) wide.
  • There are no pre-drilled holes on the surface. Fastening must be done on the inner border sides for an aesthetic appearance.
  • This product can be used as a supply or return air terminal
  • Commercial Grade
  • Please note that our slot diffusers do not include fasteners.
  • Material: solid extruded aluminum
  • Finish: Powder coated in matte white
  • Matching miter corners available or in custom angles
  • Customizable lengths or continuous incremental linear
  • Other color finishes available upon request
  • Project quotes can be provided based on customers drawings
  • CAD (Dwg) or BIM (Revit) models available upon request
  • Contact us for customizable plenum box options. Our plenums intro video.
  • Ships from Vancouver, Canada. Shipping to USA takes 2-7 business days after dispatch (depends on delivery address).



Performance



Performance Data

Flow Rate (CFM)

 Static Pressure (in.wg) Noise Level (NC)

87
137
182

0.09
0.21
0.37

20
30
40

  * Flow rate (CFM) and static pressure (in.wg) are interrelated. It is crucial to know your HVAC system total or static pressure when choosing the proper GRD for optimal performance.



Submittal

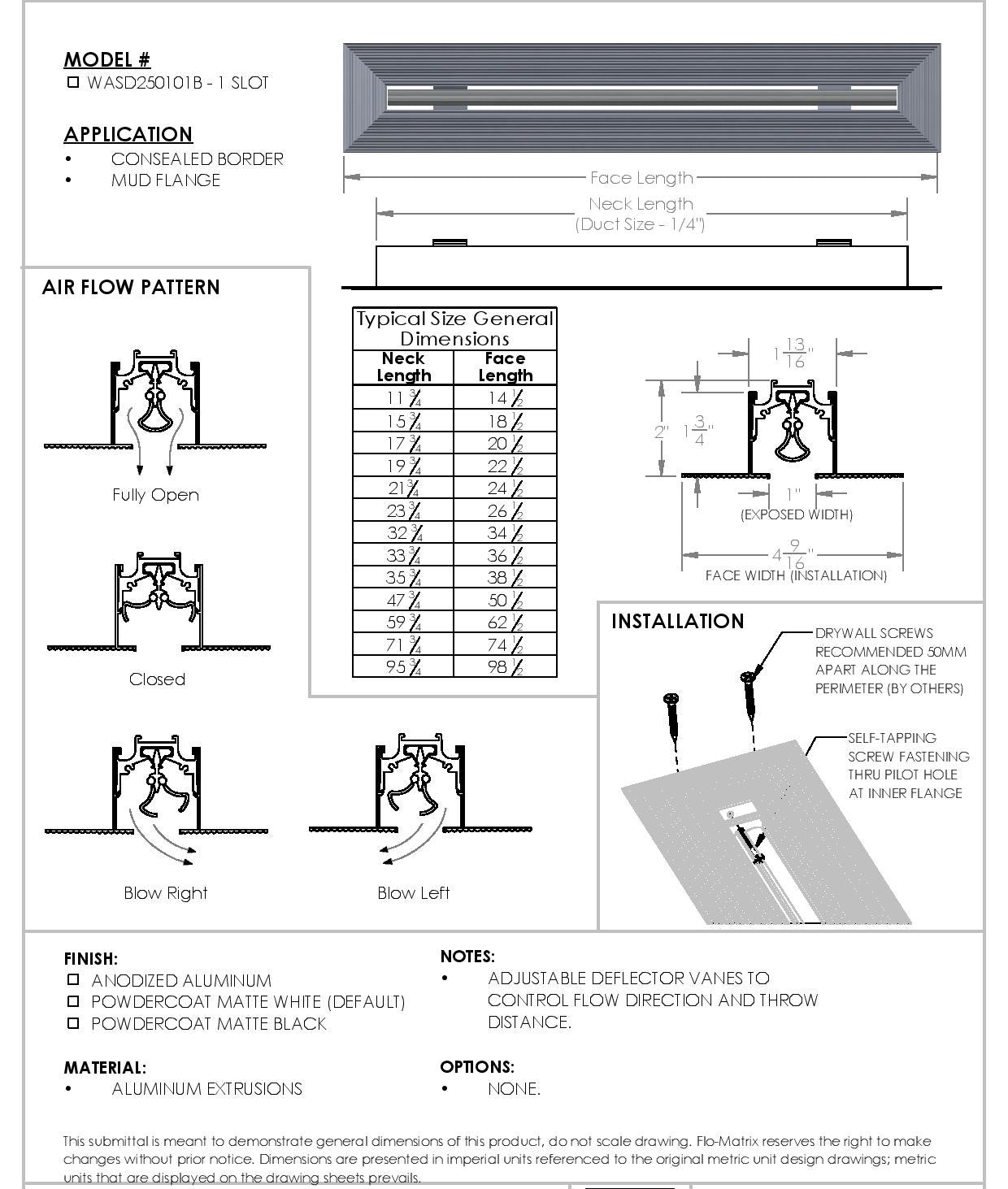

Mud in flange flushed linear slot diffuser submittal



Additional Information



What constitutes commercial grade grilles, registers, and diffusers (GRD)?

A commercial grade product should have a complete set of technical data that would assist architects, engineers, and HVAC professionals to select the proper products for their projects. A standard commercial product should have the following information:

  • Listed specific material and grade used as the primary composition material
  • Comprehensive product performance data: flow rate, static pressure, noise level and more
  • For project specific enquires regarding our products, please contact our product specialists at +1-604-437-1527.



Other Details:

  • Time-proven (Since 1997) professional & commercial grade linear slot diffusers made with 6063-T5 Grade Extruded Aluminum. This type of aluminum has a relatively high tensile properties, provides excellent finishing characteristics and is highly resistant to corrosion.
  • This product is tested in accordance to:  ADC1062:GRD-84  (ADC1062R4) and ASHRAE 70-2006 “Method of Testing the Performance of Air Outlets and Air Inlets (ANSI approved)”. Our air ventilation products are constantly under research and redevelopment utilizing today’s testing standards and computational fluid dynamics simulation (CFD) energy models.
  • Rich powder coated finish with a strong aluminum profile and reinforced tig-welds prevent cracking, chipping and bent corners. Our linear slot diffusers include a weather stripping seal to prevent ceiling smudging caused by some substandard performance air vents with air leakage issues.
  • We have been producing quality 1 to 12 slots linear diffusers for the HVAC industry since 1997.



Videos



Mud-In Flange Linear Slot Diffuser Video



Demonstration of airflow direction adjustment - 1 Slot Linear Diffuser



How to insert a linear slot diffuser into a plenum





Linear Slot Diffuser Smoke Test (Vertical Throw) Video - 1 Slot





Linear Slot Diffuser Smoke Test (Horizontal Throw) Video - 1 Slot





Our retail store showroom - Greater Vancouver, Canada





Video of previous custom plenums



 Mud In Flange Linear Slot Diffuser Installation Guide Download
