Details

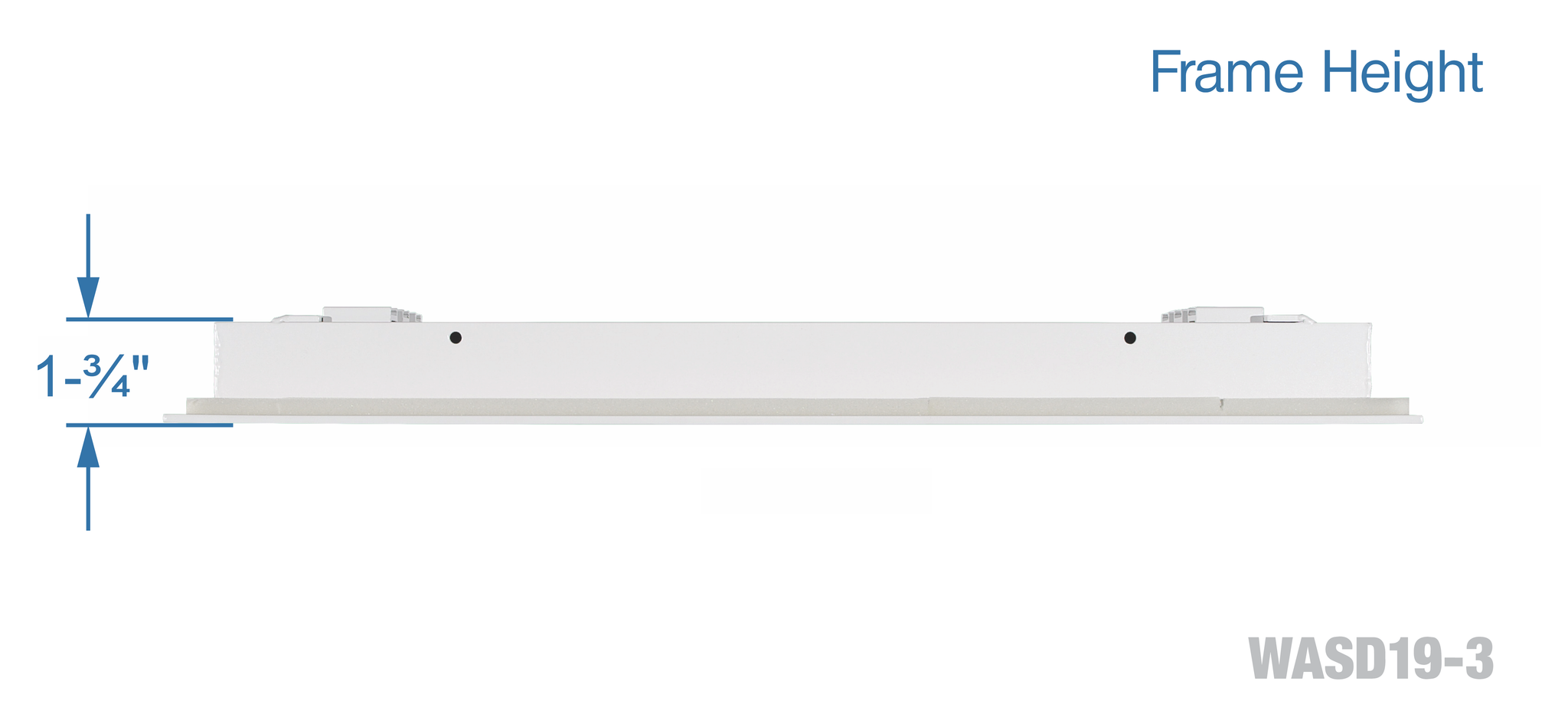

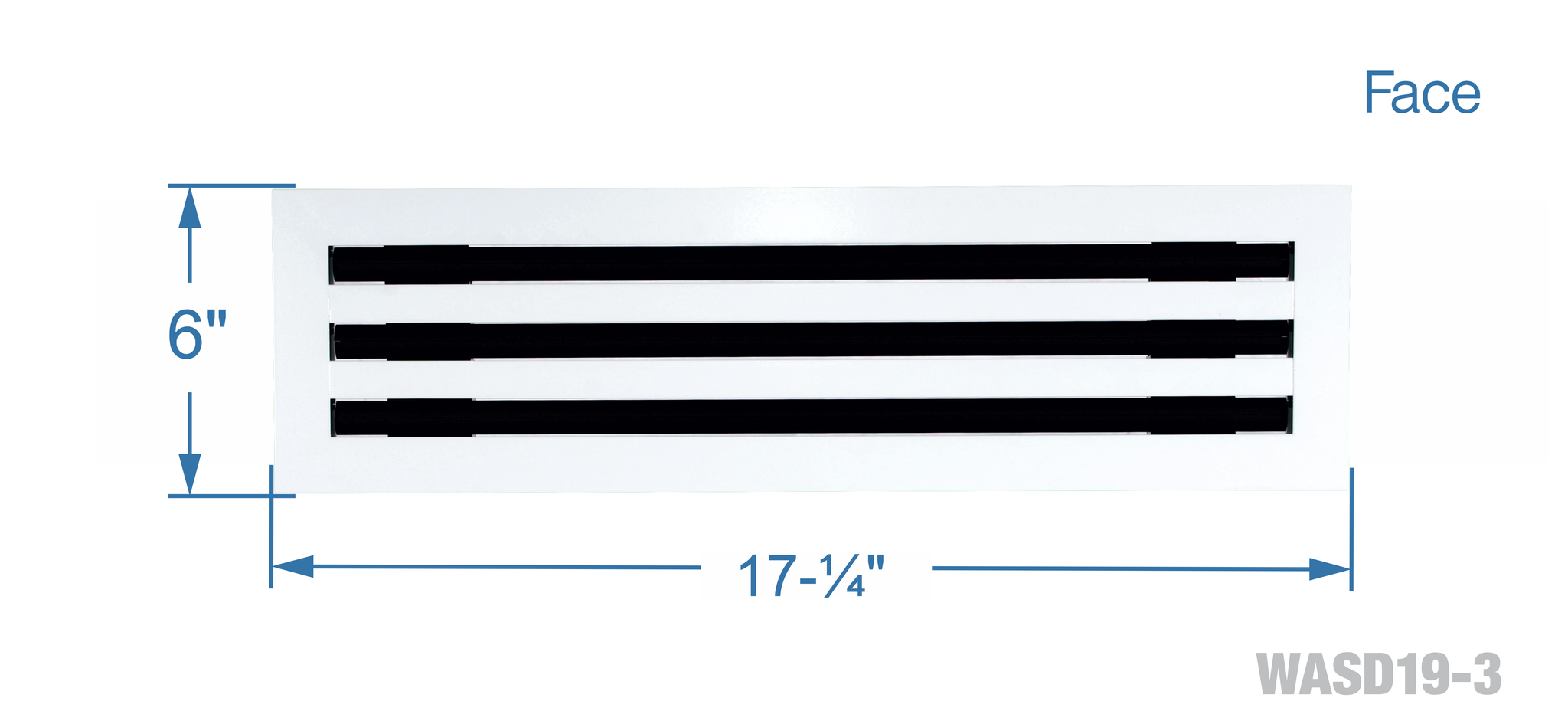

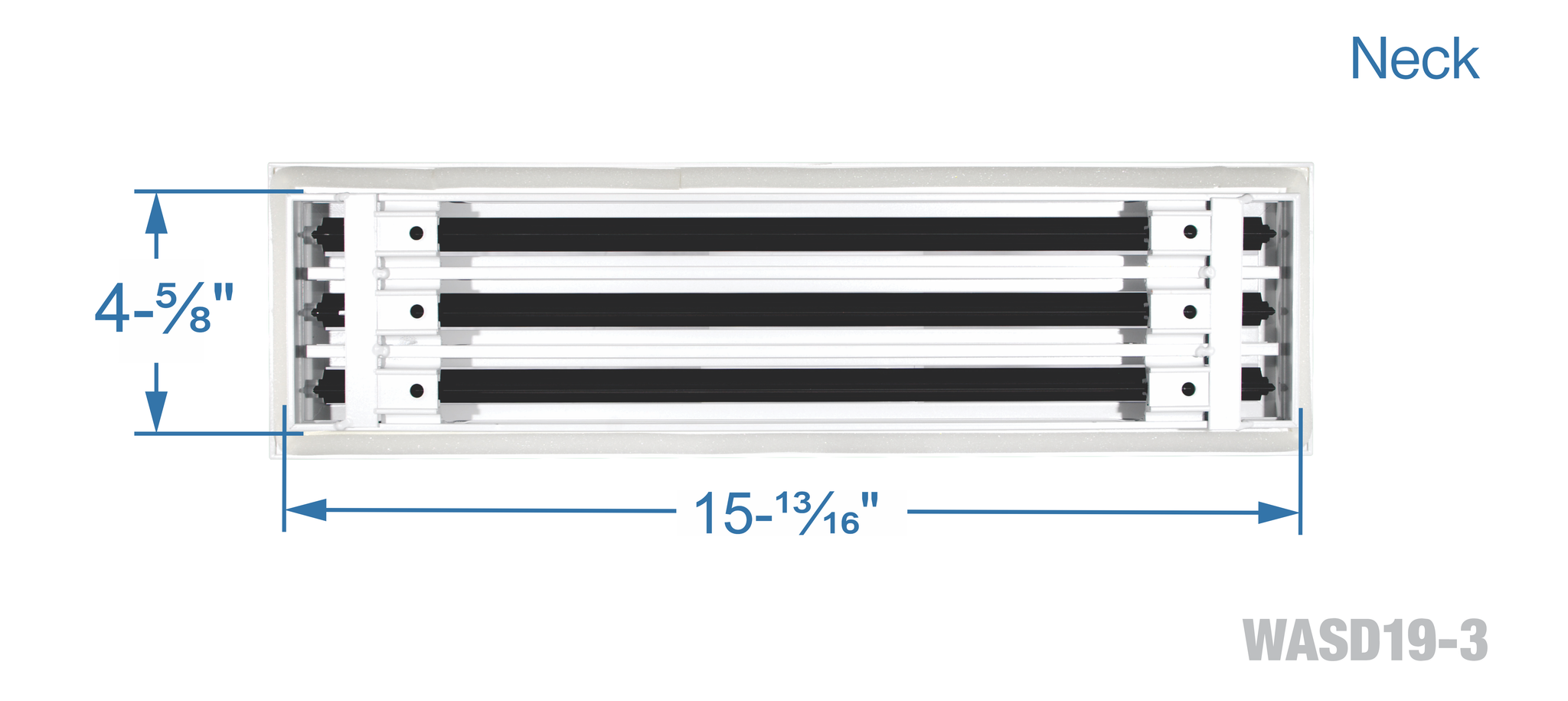

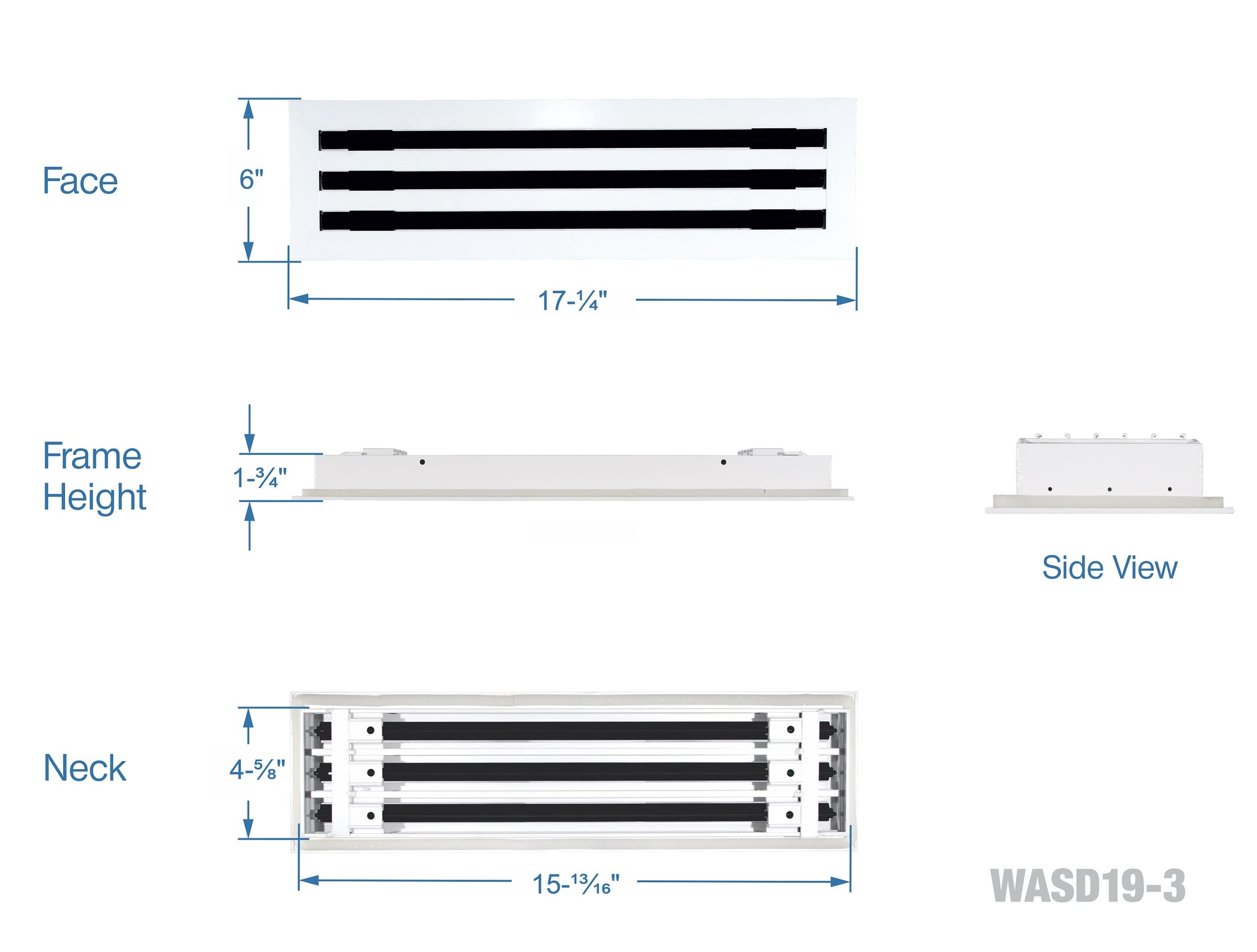

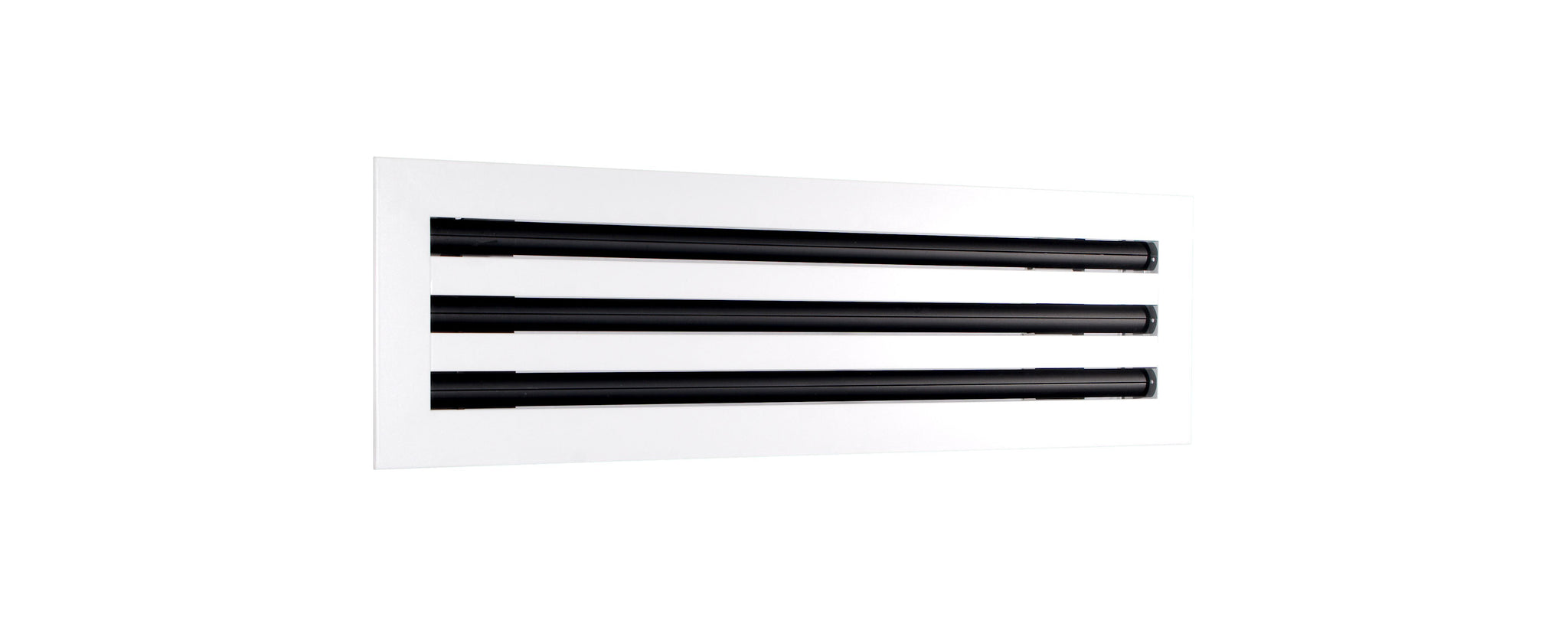

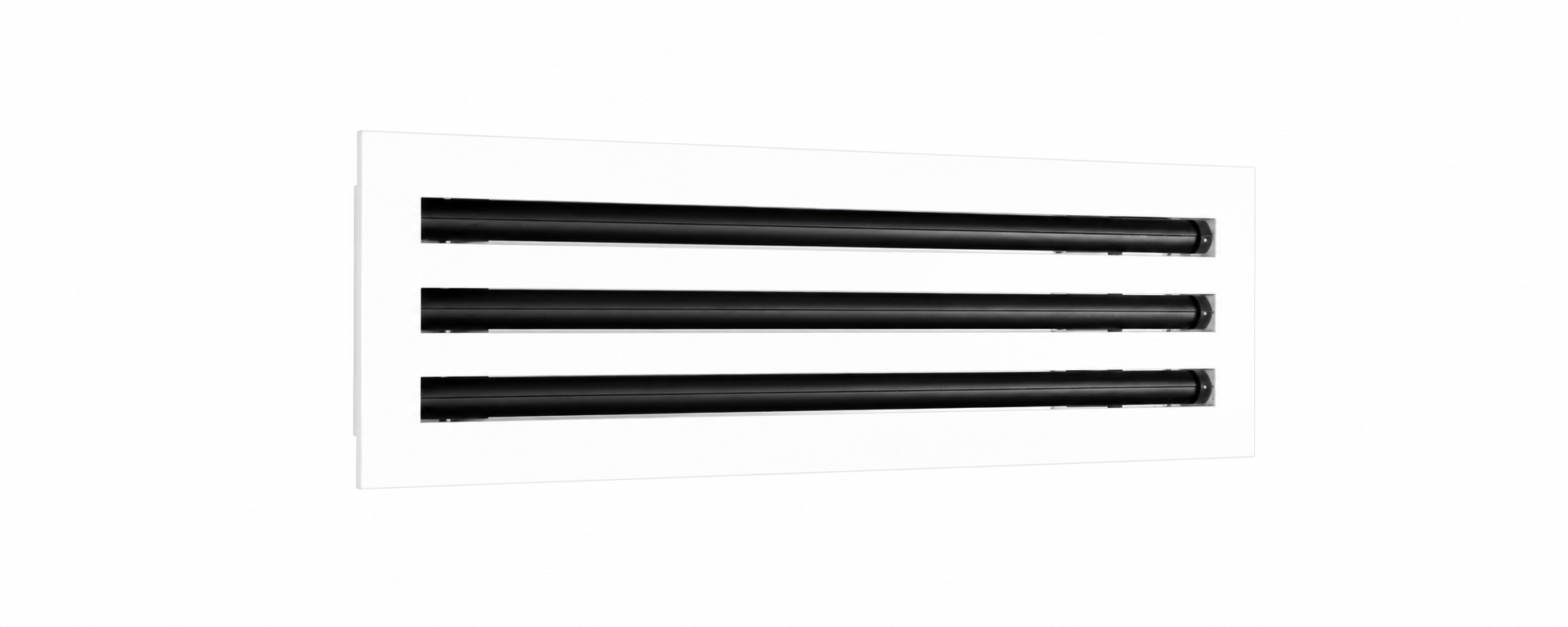

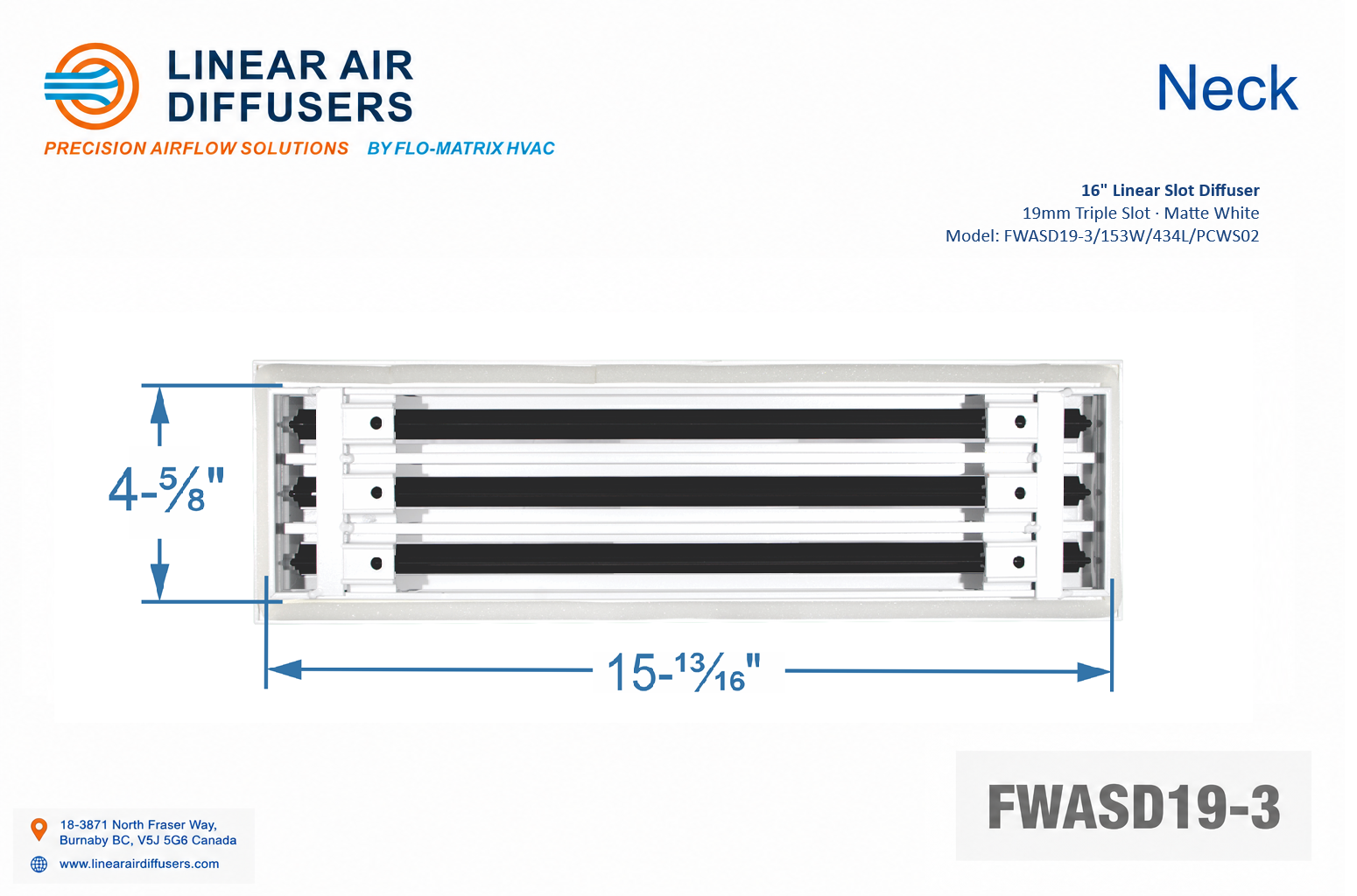

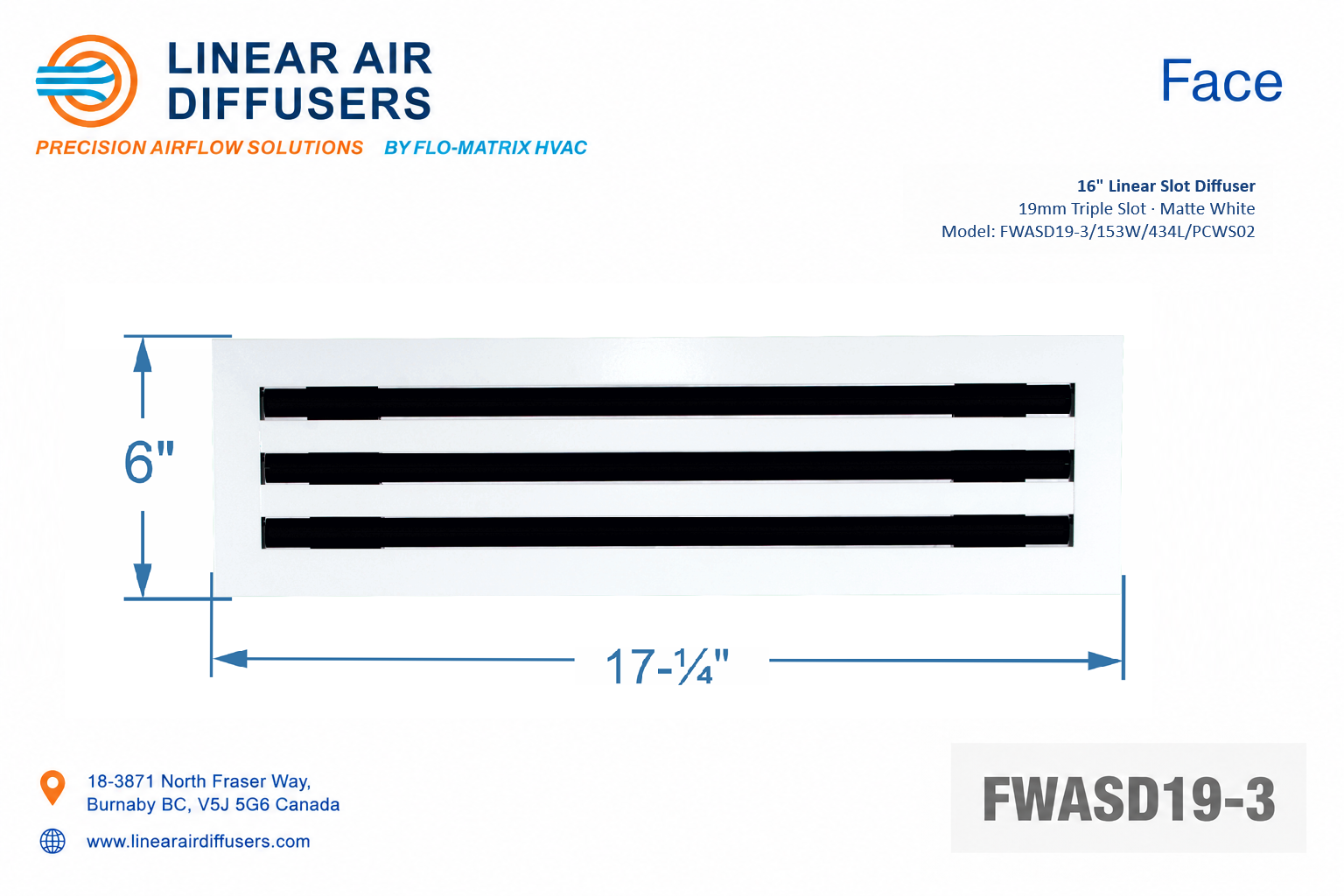

- Precision Design & Fit: With a 16" x 4¾" nominal size, this linear slot diffuser features three crisp ¾" openings for a sharp, modern look that integrates seamlessly into any ceiling. (Please check the size diagram for exact measurements).
- Eliminates Ceiling Smudges: An integrated foam gasket creates a tight seal against the ceiling, preventing dusty air leakage that causes those frustrating black marks and ensuring all conditioned air is directed through the vent covers.
- Commercial-Grade Durability: Built from heavy-duty 6063-T5 aluminum and fortified with robust Tig welds, this vent cover is engineered to resist cracking, chipping, and bending, ensuring a lifetime of dependable operation.
- Premium Matte White Protection: Boasting a high-quality matte white powder coat, this finish is engineered to be highly resistant to everyday scratches, corrosion, and the effects of fading.
- Seamless, No-Screw Look: Achieve a flawless, custom installation. All mounting points are discreetly located on the inner edges, leaving the visible face of the air register completely clean and unbroken for a minimalist aesthetic. (Fasteners are not included).
- Customizable Airflow Performance: For ideal HVAC system balancing, this linear slot diffuser can be paired with a custom plenum box (sold separately), allowing you to fine-tune air delivery for any room's requirements.
-
Ships worldwide from our Vancouver, Canada facility. Local pickup is also available at our showroom.
Need custom sizes? Request a quote for custom linear slot diffusers and plenums to get pricing, lead times, and support for your project.
Performance
| Performance Data | ||
|
Flow Rate (CFM) |
Static Pressure (in.wg) | Noise Level (NC) |
|
105 |
0.06 |
20 |
|

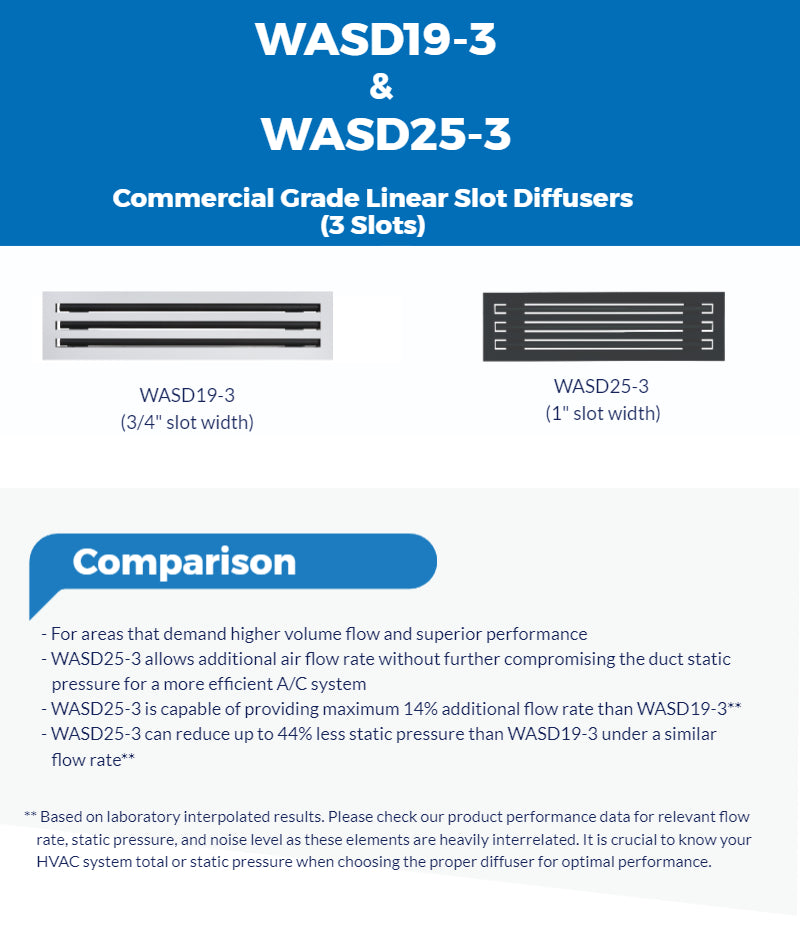

* Flow rate (CFM) and static pressure (in.wg) are interrelated. It is crucial to know your HVAC system total or static pressure when choosing the proper GRD for optimal performance. * Performance data independently verified by a globally recognized third-party testing facility. Tested to ADC1062:GRD-84 and ASHRAE 70-2006 standards. CFD and modern testing ensure optimal performance and energy efficiency. For complete performance data, please contact us. Need more airflow? See the enhanced airflow 3-slots diffuser |

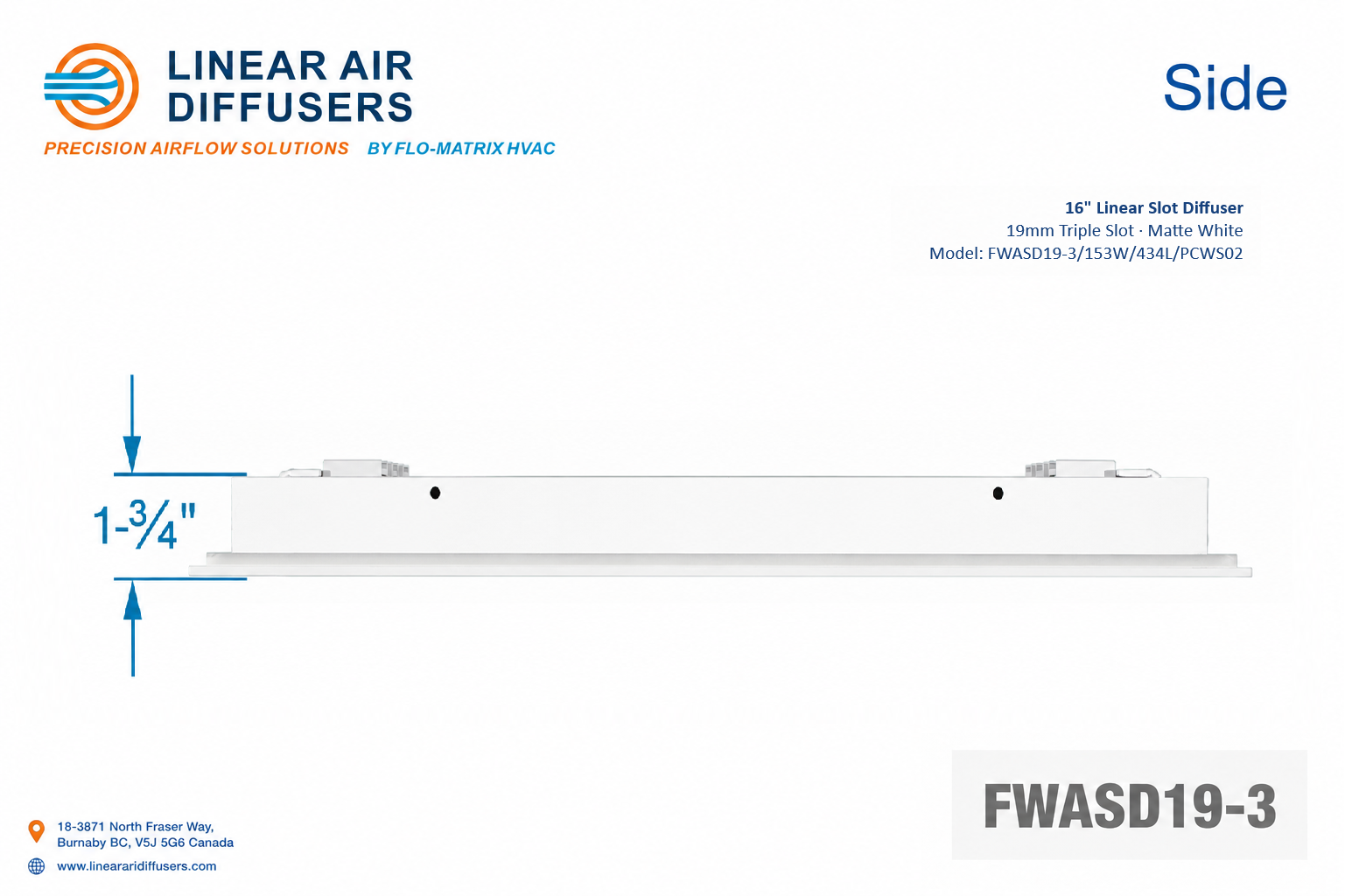

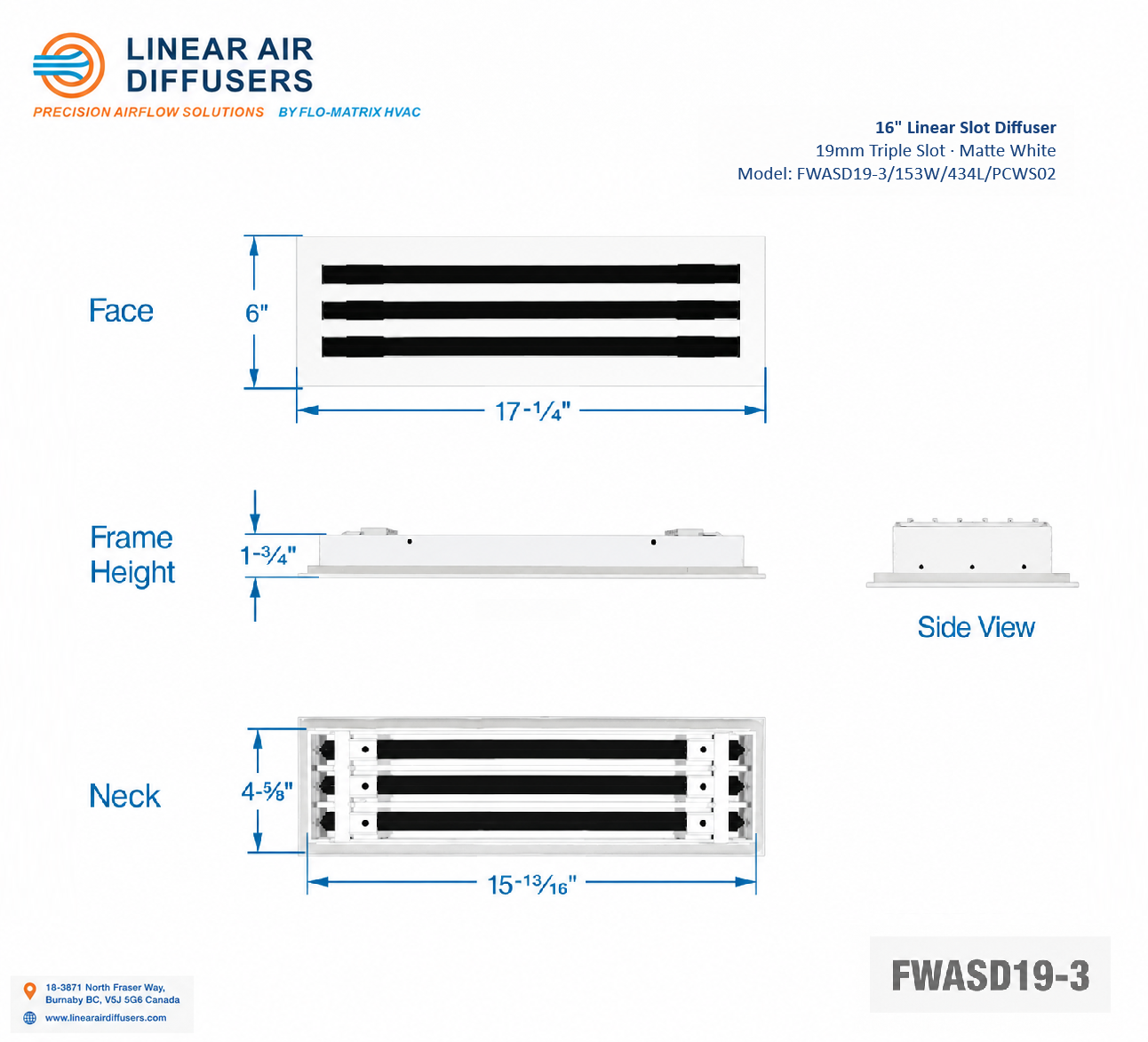

Submittal
Click here to download a high resolution of this submittal sheet
Resources
Linear Slot Diffuser Installation Guide Download
Our Guide to 19mm VS. 25mm Slot Width Differences
Linear Slot Diffusers: The Smart Choice for Modern HVAC Systems
Why 6063-T5 Aluminum is the Gold Standard for Your Linear Slot Diffuser
Linear Slot Diffuser: A Guide for Retrofit vs. New Construction
CFD Airflow Analysis Services for Smarter HVAC Design
Defining "Commercial Grade" in Air Distribution Products
What truly separates commercial-grade grilles, registers, and diffusers? It's the comprehensive engineering data that allows HVAC professionals and design teams to specify products with absolute confidence. This means full transparency on the materials used and certified performance results for critical factors such as noise generation, airflow volume, and static pressure loss.
To guarantee this performance, every product is validated against the stringent protocols of ASHRAE 70-2006 and ADC1062:GRD-84. Our R&D process integrates cutting-edge CFD simulations alongside physical testing, ensuring our designs deliver superior efficiency and performance.
We've been a leading manufacturer of commercial linear slot diffusers (offering 1 to 12 slots) since 1997. Have a project that requires expert insight? Our product specialists are ready to assist you at +1-604-437-1527.
