Details
Our architectural grade double deflection grilles are made with solid extruded aluminum. These air grilles are ideal for general air distribution and VAV applications. The adjustable deflector vanes create a precise fit to improve air flow and your comfort level. This product requires installation by professionals.
- Duct Opening Size: 10x16" (please refer to size chart below for details)
- Front horizontal blades
- There are no pre-drilled holes on the surface. Fastening has to be done on the inner border sides for an aesthetic appearance.
- These double deflection grilles do not include fasteners.
- Commercial Grade
- Material: solid extruded aluminum
- Finish: Powder coated in matte white
- Ships from Vancouver, Canada. Shipping to USA takes 2-7 business days after dispatch (depends on delivery address).

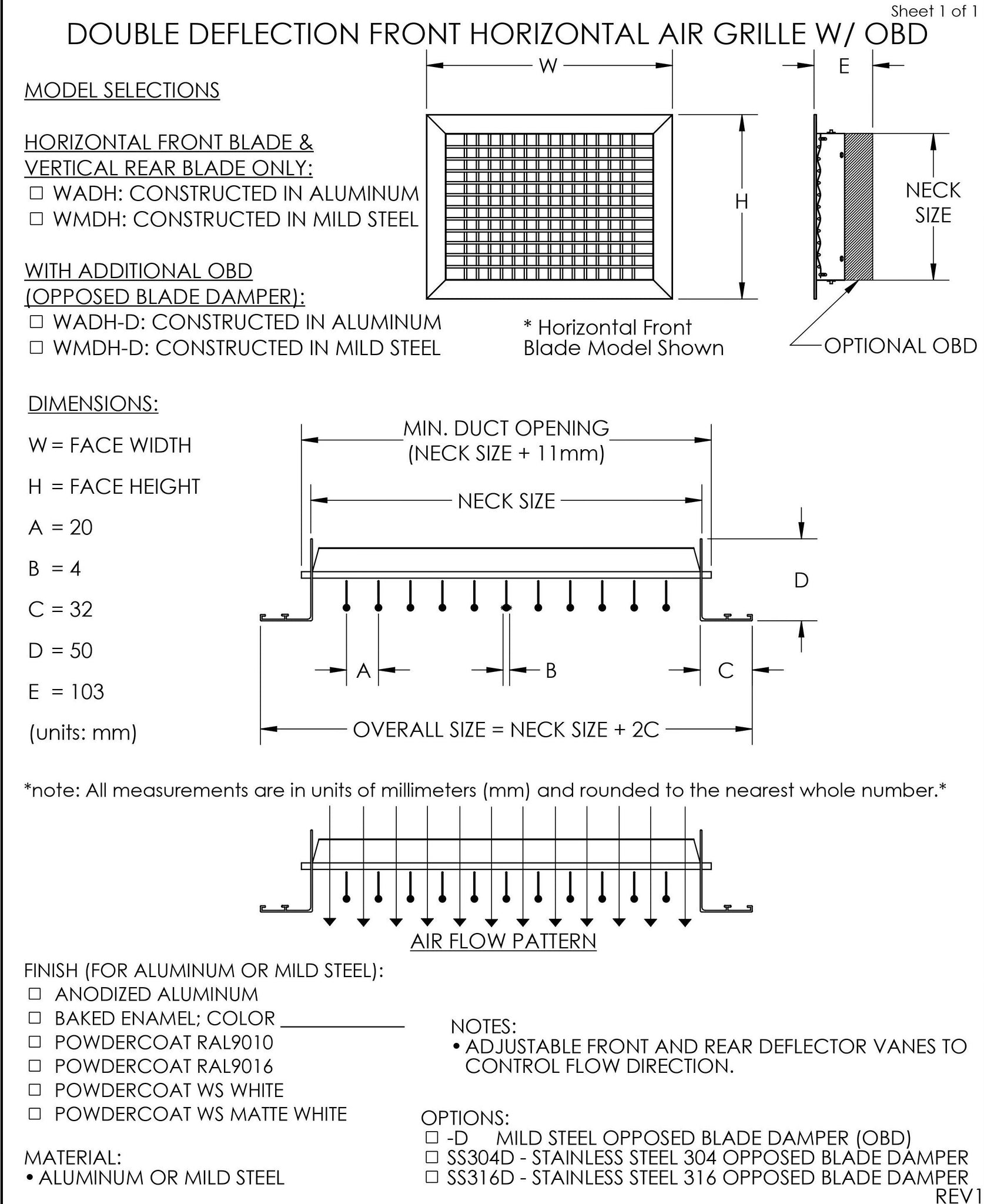

Submittal
Videos
Showcase Video of Product & Demonstration of Blades Adjustment - Double Deflection Air Grille (Front Horizontal)

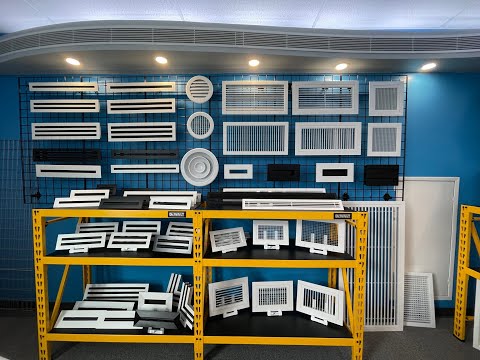

Our retail store showroom - Greater Vancouver, Canada
