20" Linear Slot Diffuser Vent Cover (1 Slot with 19mm Opening) - Matte Black - FLO-MATRIX HVAC
-
Flo-Matrix Air Ventilation Ltd. (Burnaby BC, CANADA)
Pickup available, usually ready in 24 hours3871 North Fraser Way
Unit 18
Burnaby BC V5J 5G6
Canada+16044371527
- Details
- Performance
- Submittal
- Resources
- Videos

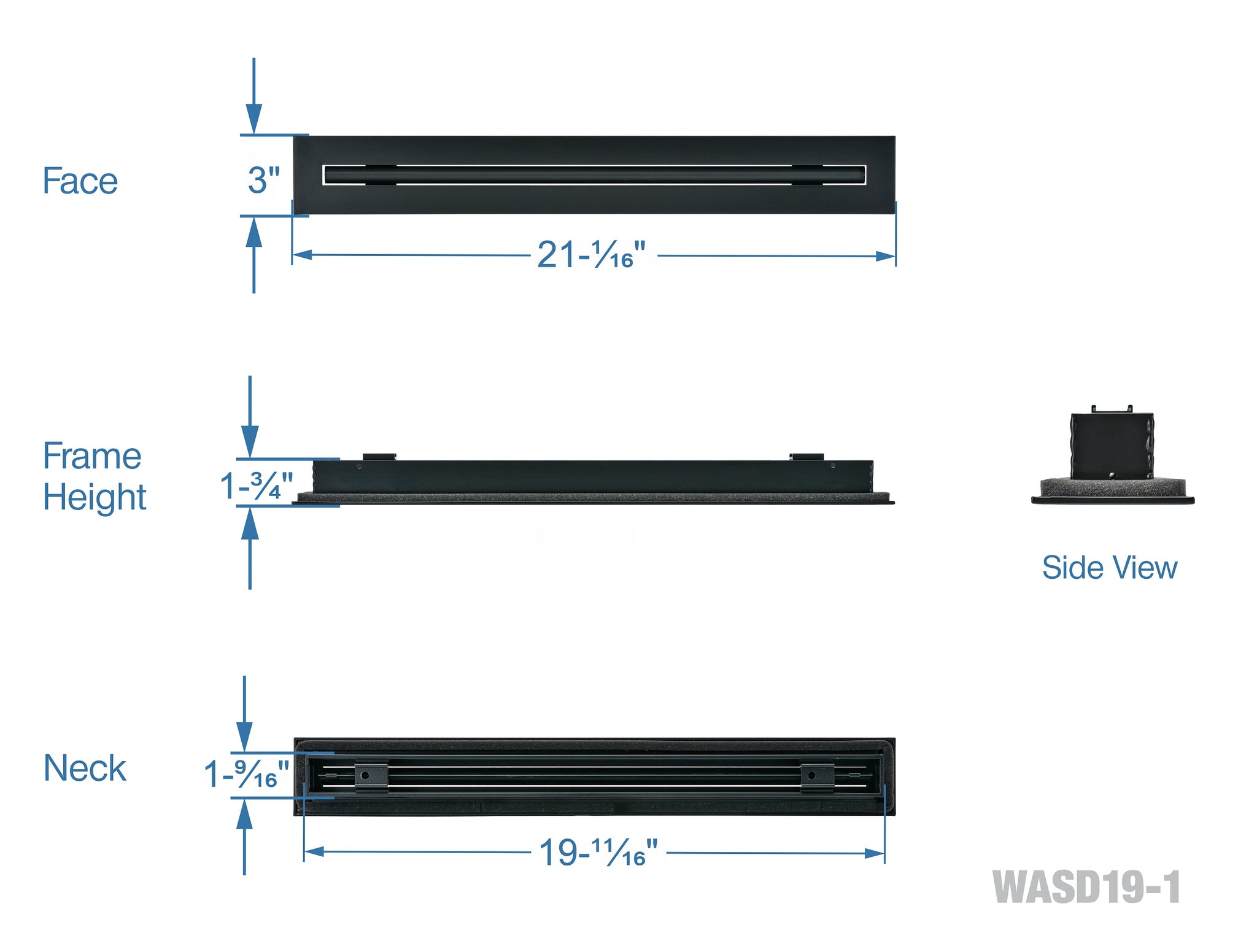

- Precision Size & Design: Features a clean 20" x 1.5" nominal size with a sharp ¾" (19mm) slot opening for a sleek, modern aesthetic. (Please refer to the size diagram for detailed dimensions).
- Eliminates Ceiling Smudges: An integrated weather-stripping seal prevents air leakage, protecting your ceiling from unsightly dust marks and ensuring all air is directed through the diffuser.
- Durable, Commercial-Grade Construction: Built from heavy-duty 6063-T5 architectural-grade aluminum with a tough powder coat finish and reinforced Tig welds to resist cracking, chipping, and bending for a lifetime of performance.
- Sleek, Flawless Finish: Finished in a sophisticated matte black powder coat, chosen for its superb durability and high resistance to corrosion and everyday wear.
- Clean, Minimalist Installation: Designed for a flawless look with no visible screw holes. Fastening points are discreetly located on the inner border sides. (Note: Fasteners are not included).
- Custom Airflow Solutions: Pair this diffuser with a customizable plenum box (sold separately) to perfectly match your HVAC system's requirements. Watch our plenums intro video to learn more.
- Fast Shipping from North America: We ship quickly from Vancouver, Canada. Orders to the USA typically arrive within 2-7 business days after dispatch.
| Performance Data | ||
|
Flow Rate (CFM) |
Static Pressure (in.wg) | Noise Level (NC) |
|
72 |
0.11 |
20 |
| * Flow rate (CFM) and static pressure (in.wg) are interrelated. It is crucial to know your HVAC system total or static pressure when choosing the proper GRD for optimal performance. |
Our Guide to 19mm VS. 25mm Slot Width Differences
Linear Slot Diffusers: The Smart Choice for Modern HVAC Systems
CFD Airflow Analysis Services for Smarter HVAC Design
What Makes a Grille, Register, or Diffuser "Commercial Grade"?
True commercial-grade GRD products provide architects, engineers, and HVAC professionals with the complete technical data needed for precise project specification. This includes detailed information on material composition and comprehensive performance metrics like flow rates, pressure drop, and noise criteria (NC).
All our products are rigorously tested in accordance with ADC1062:GRD-84 and the ASHRAE 70-2006 standards. We leverage computational fluid dynamics (CFD) and modern testing to continuously refine our designs for optimal performance and energy efficiency.
Since 1997, we have been a trusted manufacturer of high-quality linear slot diffusers (from 1 to 12 slots) for the commercial HVAC industry. For project-specific questions and expert guidance, please contact our product specialists at +1-604-437-1527.
Showcase Video of Product - 1 Slot Linear Diffuser
Demonstration of airflow direction adjustment - 1 Slot Linear Diffuser
How to insert a linear slot diffuser into a plenum
Linear Slot Diffuser Smoke Test (Vertical Throw) Video - 1 Slot
Linear Slot Diffuser Smoke Test (Horizontal Throw) Video - 1 Slot
Videos of previous custom plenums
Our retail store showroom - Greater Vancouver, Canada
