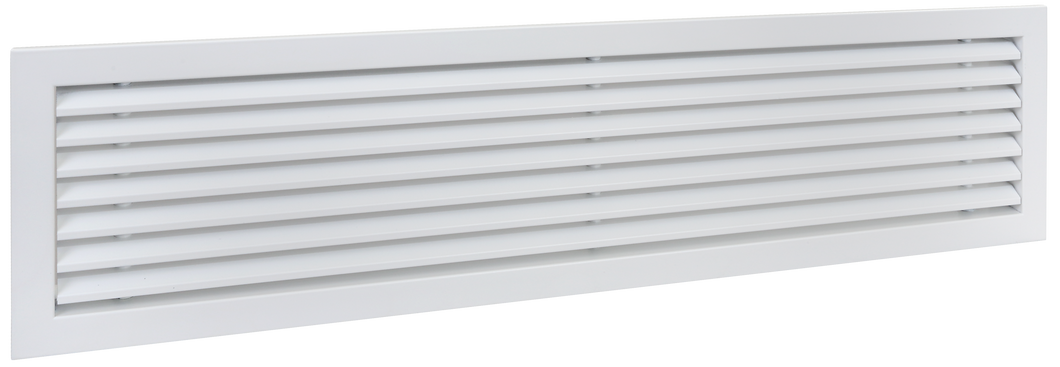

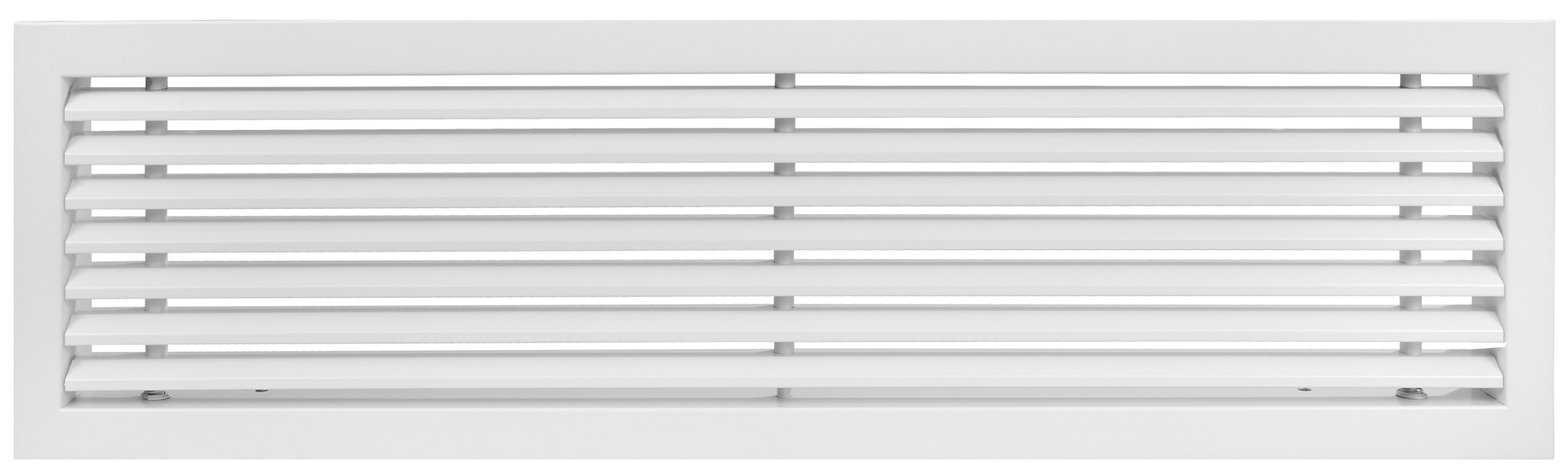

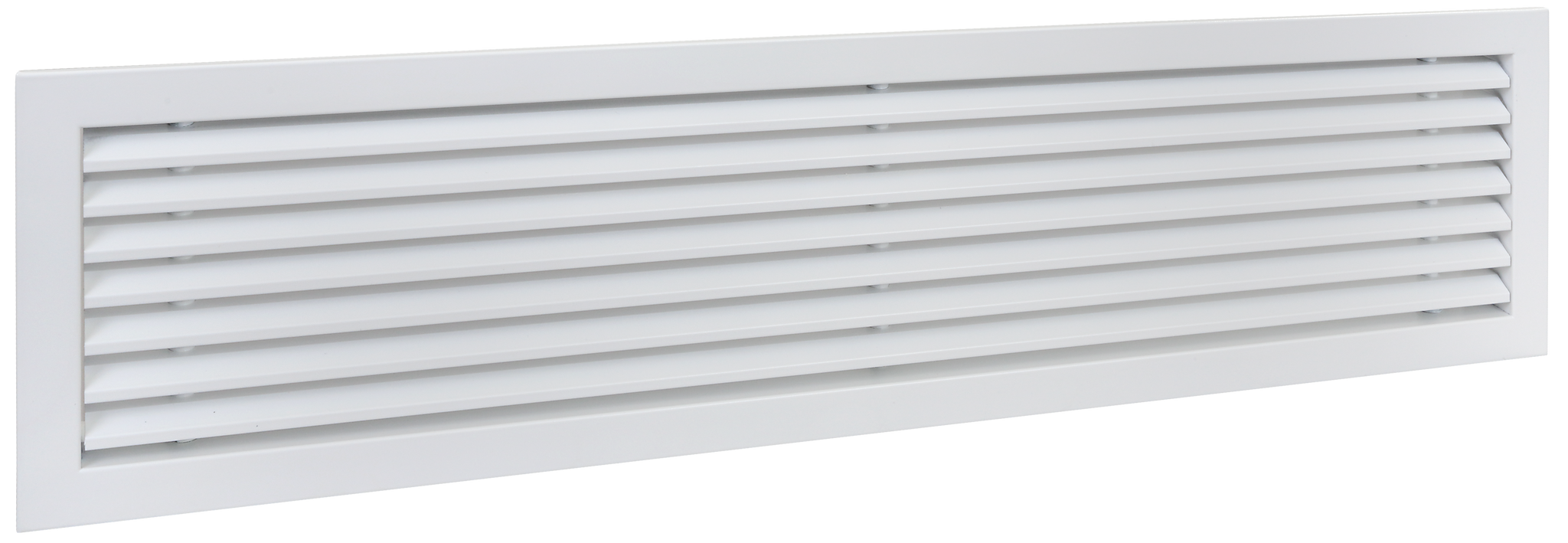

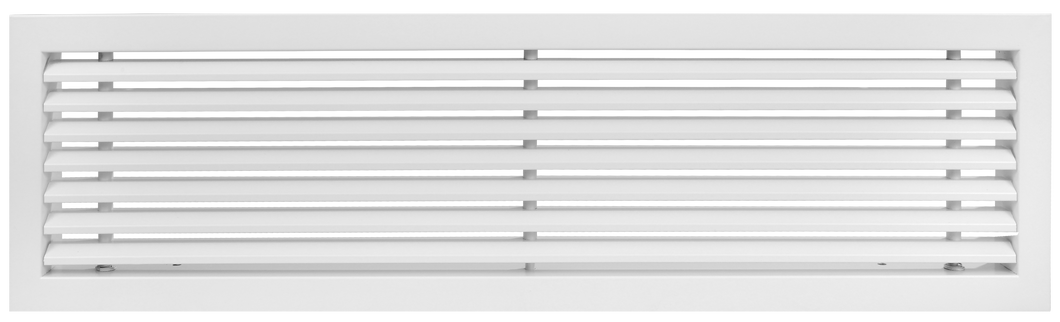

3" x 22 3/4" Linear Bar Grille Air Vent Cover (30 Degrees Deflection)
3" x 22 3/4" Linear Bar Grille Air Vent Cover (30 Degrees Deflection)
3" x 22 3/4" Linear Bar Grille Air Vent Cover (30 Degrees Deflection) size chart
3" x 22 3/4" Linear Bar Grille Air Vent Cover (30 Degrees Deflection) size chart

22 3/4x3" Linear Bar Grille / Supply & Return Air Grille - (30 Degrees Deflection)

WABD30/102B610/PCWS02
Regular price
$28.00 USD
Sale price
$28.00 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Our architectural linear bar grilles are crafted with solid extruded aluminum where durability is a major concern. These linear diffusers are perfect for general air distribution such as supplying, returning and transferring air. We recommend installation by professionals for this product.

  • Actual Duct Size: 22 3/4x3”
  • Face Size: 24x4"
  • 30 Degree Deflection
  • Please refer to the product diagrams below on how to measure the neck size and face size of these linear bar grilles.
  • These architectural grilles do not include fasteners.
  • Material: solid extruded aluminum
  • Finish: Powder coated in matte white
  • Commercial Grade
  • Ships from Vancouver, Canada. Shipping to USA takes 2-7 business days after dispatch (depends on delivery address).



Linear Bar Grille - 30 Degree deflection size chart



Linear Bar Grille - 30 Degree deflection size chart
